نام محصول:
قطع کننده مدار مغناطیسی
نام انگلیسی:

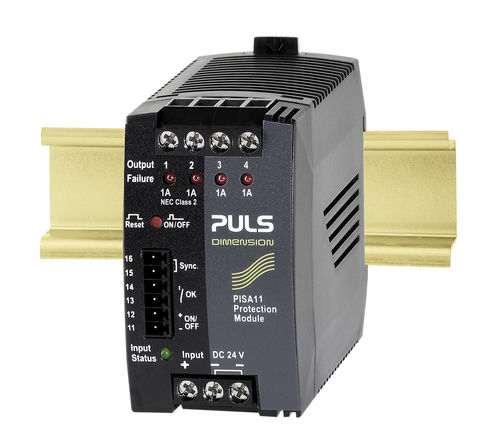

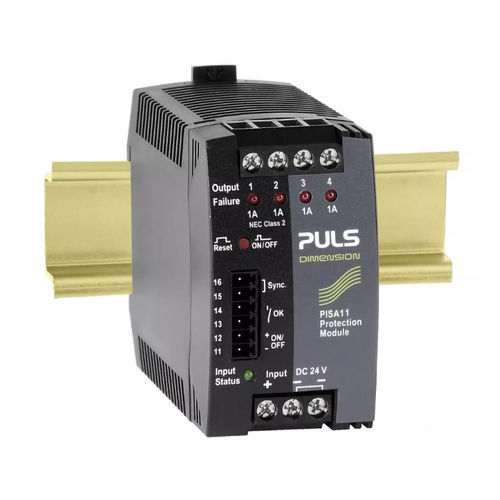

Magnetic circuit breaker PISA11.401
برند:
PULS GmbH
مشخصات:
DC Input voltage – DC 18 V – 30 V
Input voltage required to switch on the outputs, typ. – 21.4 Vdc
Input voltage protection level min./max. – 21 – 21.8 Vdc
Output data
Output current – 1 A 1 A 1 A 1 A
Output current limitation min./max. – 9 / 12.7 A
Turn-on delay of outputs – 270 ms
Shutdown-times at short circuit, typ. – 110 ms
Overview
Dimensions (WxHxD) – 45 mm x 75 mm x 91 mm
Weight per unit (excl. packaging) – 120 g
Operating temp. range – -25 °C to 70 °C
Connection method – Screw terminals
No-load losses, typ. – 1.0 W
MTBF SN 29500 @ 40 °C (h) – 2347000 h
One input and four current controlled outputs
NEC Class2 compliant
Ensures sufficient supply voltage for critical loads even in the event of a fault
Protects small cable sizes against overload
Hassle-free turn-on of loads with large input capacitors
Wide temperature range between -25 °C and +70 °C
On/Off function of outputs
Compact design, width only 45 mm
Remote monitoring and control function
توضیحات:
Type
magnetic
Electrical characteristics
current
Other characteristics
DIN rail, compact
Primary current
43 mA
VDC
24 V
Rating
4 A
