نام محصول:
قطع کننده مدار حرارتی

نام انگلیسی:

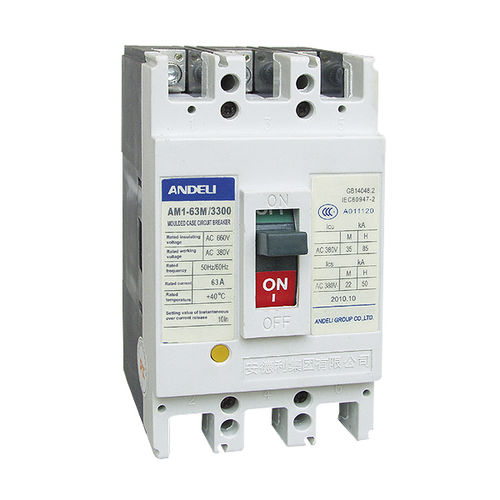

Thermal circuit breaker AM1 series

برند:
Andeli Group Company

مشخصات:
AM1 Series Moulded Case Circuit Breakers

1. Application

AM1 series moulded case circuit breaker is one of products developed and manufactured by adopting international advanced technology. It is supplied with rated insulating voltage 550 and 800V and used for circuit of AC 50/60Hz, rated operating voltage AC 400V (or below), rated operating current up to 1600A for infrequent changing over and starting of the motors.The products conforms to IEC60947-2 standard.

Note: 6A without thermal protection

The N-pole of four-poles breaker is sited at the right side of the product has four types:

Type A: Without current trip-lease on N pole which making all the time, not closing and opening with the other three poles.

Type B: Without current trip-release on N pole which closing and opening with the other poles.

Type C: With current trip-release which closing and opening with the other three poles.

Type D: With current trip-release which making all the time not closing and opening with the other three poles.

3. Protection Characteristic

The thermodynamic release of a circuit breaker provides the feature of inverse time-delay, while the magnetic release is the instantaneous operation as shown on table 2(distribution circuit breaker) and table 3 (motor protection circuit breaker).

4. Accessories of Circuit breaker

4.1 The external accessories of the breaker

Motor-driven operation device

1) Wiring diagram of type CDM electromagnetic operation device(fitting AM1-63,100,225) seethe following drawing (wiring diagram of the external accessories of the breaker in the dotted frame)

توضیحات:
Type
thermal, magnetic

Electrical characteristics
voltage, AC

Applications
distribution, motor protection

Other characteristics
molded case

Primary current
Min.: 0 AMax.: 1,600 A

VAC
550 V, 800 V
