نام محصول:
فیوز برای برنامه های فتوولتائیک
نام انگلیسی:

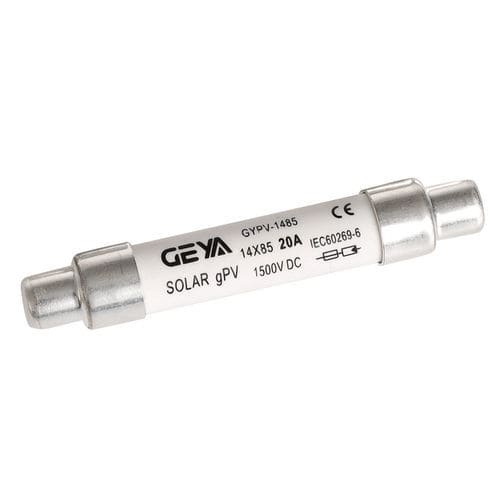

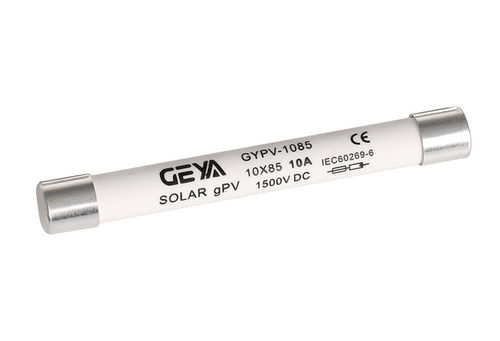

Fuse for photovoltaic applications GYPV series
برند:
Zhejiang Geya Electrical Co., Ltd
مشخصات:
Ambient Temperature:-40 ℃ ~+90℃
Equipment installation height: less than 2000m (if exceeding this value, please specify the requirements, and the company will design according to the requirements)
Relative air humidity: less than 90%
This series of the fuse is suitable for solar photovoltaic power generation system, rated voltage to1500V, rated current to 630A, used in photovoltaic power generation equipment as a photovoltaic module string and photovoltaic array for overcurrent protection, and photovoltaic panels, and batteries connected in series and parallel, to charge variable flow system for short circuit breaking protection, in the photovoltaic station and inverter rectifier system for short-circuit breaking protection, as well as photovoltaic power generation system inrush current and short circuit fault voltage for quick break protection, rated breaking capacity to 10~50kA, products confirms to IEC 60629.1 and 60629.6.
توضیحات:
Configuration
cylindrical
Class
Class gPV
Applications
for photovoltaic applications
Amperage
Min.: 2 AMax.: 50 A
VDC
1,000 V, 1,500 V
Breaking capacity
20,000 A
Length
51 mm, 85 mm, 109 mm(2 in, 3.3 in, 4.3 in)
