نام:فیلتر گرد و غبار wamair
Filter dust collector WAMAIR
مشخصات:
TechnologyfilterApplication domainfor the food industry, for the pharmaceutical industryOther characteristicscompact, high-efficiency, stand-aloneOutput
Max.: 9,000 m³/h (317,832 ft³/h)
Min.: 250 m³/h (8,829 ft³/h)
شرح:

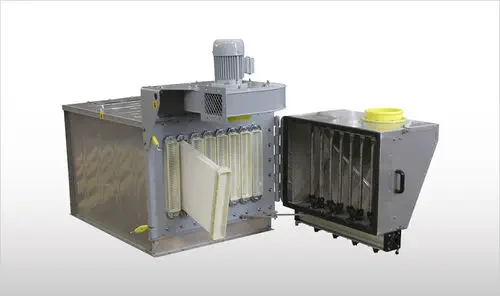

WAMAIR Dust Collectors are widely recognized as the most versatile compact dust collector range available on the world market for industrial applications. Thanks to various configurations available, WAMAIR has proved to be suitable for virtually all industries. WAMAIR Dust Collectors consist of a polygonal 304 stainless-steel casing, horizontally or vertically inserted pocket-type or high-efficiency POLYPLEAT filter elements. A compressed air pulse-jet cleaning system is integrated into the easily accessible hinged front door. WAMAIR Dust Collectors are either built in for venting applications or come as a stand-alone unit with dust collecting hopper. Versions with an integrated fan are available for suction applications. WAMAIR Dust Collectors separate dust from the air flow by means of pocket-type or special POLYPLEAT filter elements. Dust drops down after a programmable, automatic compressed air pulse-jet cleaning device integrated into the access door has removed it from the filter elements. By opening the access door the operator can easily and safely remove the filter elements from the clean air side. The dirty air flow may enter the filter casing from the top inlet flange where heavier particles are subsequently pre-separated while the flow is on its descent. Alternatively, dirty air may enter through the bottom flange, which can be either fixed on a PT-type WAM hopper or on the device to be de-dusted (silo, belt conveyor, bucket elevator, chain conveyor, etc.). WAMAIR Dust Collectors are configurable for both venting and suction applications.
