نام دستگاه:فیلتر گردگیرWANFLO
Filter dust collector WAMFLO
مشخصات:
TechnologyfilterApplication domainfor the food industry, for the pharmaceutical industryOther characteristicsmodular, high-efficiency, vacuumOutput
Min.: 60 m³/h (2,119 ft³/h)
Max.: 6,000 m³/h (211,888 ft³/h)
شرح:

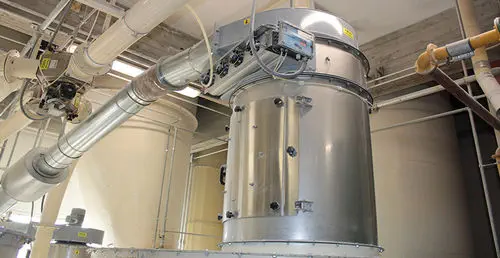

The WAMFLO Dust Collector range is the result of WAM’s decades of experience in dust filtration technology. Since it went into production shortly after the turn of the millennium, tens of thousands of units have left the Group’s manufacturing plants all over the world. In diverse configurations WAMFLO has proved to be suitable for a variety of applications in virtually all industries. WAMFLO Dust Collectors are equipped with a cylindrical stainless-steel casing and flanged bottom ring, which contains vertically mounted bag-type, cartridge-type or high-efficiency POLYPLEAT filter elements. A compressed air pulse-jet filter element cleaning system is integrated into the hinged top cover or connecting top flange. WAMFLO Dust Collectors are available with or without suction fan. As an option for applications with top-mounted suction fan or in case of limited headroom, WAMFLO can be equipped with a large front door which facilitates access to the filter elements form the dirty air side in case of inspection or maintenance. WAMFLO is supplied with an integrated modular electronic control panel that manages cleaning cycles according to the specific requirements of the work process. The collector can be installed on top of a silo or on any other equipment that requires dedusting (belt conveyor, bucket elevator, chain conveyor, etc.), or as a “stand-alone” unit fixed on a standard DK-type WAM dust collecting hopper. WAMFLO separates dust particles carried in suspension by an air flow using filter elements. The dusty air current passes through the filter media, which holds back the dust particles allowing the air to flow through.
