نام محصول:
فیلتر گاز
نام انگلیسی:

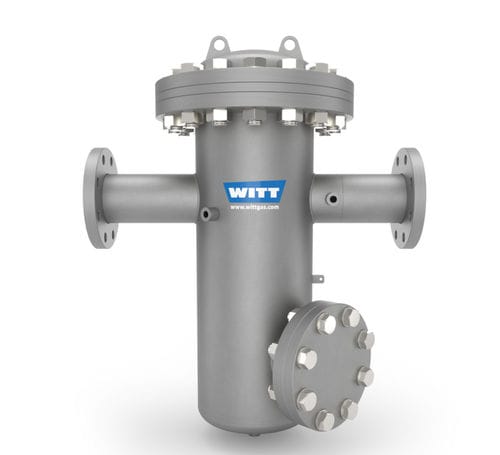

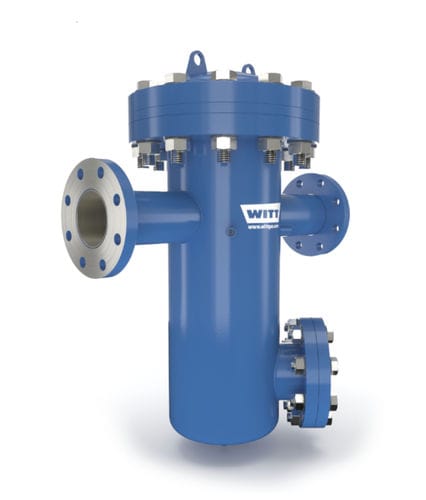

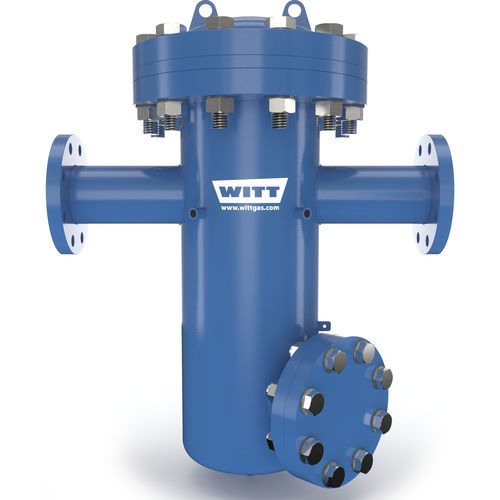

Gas filter LE6
برند:
WITT-Gasetechnik
مشخصات:
3″ gas filter for filtering out mechanical impurities and condensate in pipelines, heavy unit for very high flow rates
compliance with the EIGA, AIGA and CGA maximum velocity limits for O2
downstream equipment performance improvement
can extend service life and reduce maintenance requirements of downstream equipment
in-line maintenance, saves time and money
very high flow rates, with low pressure drop

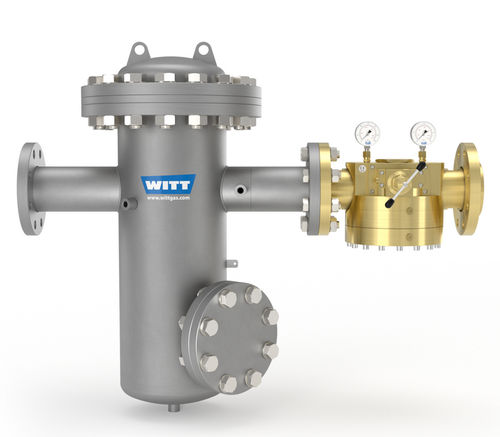

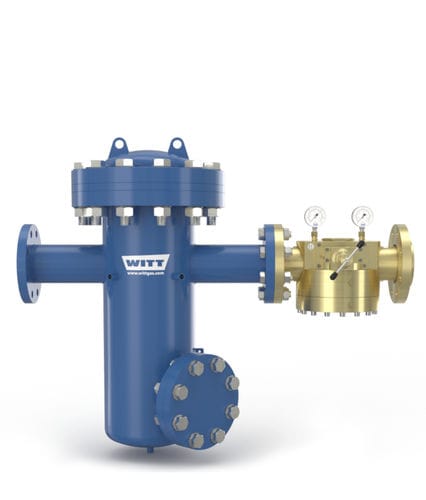

ideal in combination with Dome Pressure Regulator 767LE (including with smart-option)
certainty of safety and functionality – every filter is 100% tested
WITT gas filter LE6 protects downstream components and systems f rom contamination and condensates.
Its size allows high flows with low pressure drop and compliance with the EIGA, AIGA and CGA maximum velocity limits.
Benefits
ultra fine filtering out of mechanical impurities through bronze filter inserts
broad range of applications – compatible with many technical gases
change of filter possible while installed due to user-friendly design
high flowrate owing to flow-maximising design (4 500 Nm3/h for O2 at 30 bar and 50 mbar pressure drop)
condensates can be collected and removed using condensate drain
optimized design for easy installation and maintenance
extended flange connections for the simplest possible mounting of this heavy unit
connections on the inlet and outlet side to allow for pressure monitoring
reliable filtering performance increases service life of downstream components and equipment
Operation / Usage
Gas filters are designed for installation in pipelines
must be installed vertically
توضیحات:
Designed for
gas
Filtration element
cartridge
Applications
industrial
Material
stainless steel, bronze
Mounting
flange
Fluid specification
condensate
Other characteristics
low pressure, high-flow, in-line
Operating pressure
25 bar, 30 bar, 40 bar(362.594 psi, 435.113 psi, 580.151 psi)
Filtration size
15 µm
Fluid temperature
Max.: 100 °C(212 °F)Min.: -40 °C(-40 °F)
