نام محصول:
فیلتر گاز
نام انگلیسی:
Gas filter HD
برند:
WITT-Gasetechnik
مشخصات:

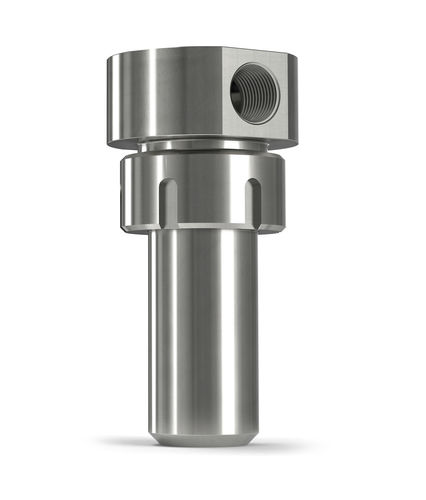

HD Gas Filter Stainless Steel up to 300 bar – for filtering out impurities (30-80 μm), ideal for hydrogen
increases service life of downstream fittings and equipment
high flow rate – owing to flow maximising design
filter inserts made of chromium-nickel steel
ideal for hydrogen and many other technical gases
change of filter possible while installed
every gas filter 100% tested
79 X 175 mm, approx. 2,7 kg
WITT gas filters for reliable protection against contamination.
Benefits:
filtering out of mechanical impurities through nickel chromium steel filter inserts
broad range of uses – compatible with many technical gases
change of filter possible while installed due to user-friendly design
high flowrate thanks to flow-maximising design
reliable filtering performance increases service life of downstream fittings and equipment
Operation / Usage:
the gas filter is designed for installation in pipelines
Maintenance:
the filter inserts must be checked regularly and replaced if necessary
suitable for hook wrench HN 10 according to DIN 1810
Approvals
Company certified to ISO 9001
CE-marked in accordance with PED 2014/68/EU
Cleaned for Oxygen Service in accordance with EIGA 33/18 and CGA G-4.1: Cleaning of Equipment for Oxygen Service
توضیحات:
Designed for
gas
Filtration element
cartridge
Applications
for industrial applications
Material
stainless steel
Mounting
threaded
Fluid specification
hydrogen
Operating pressure
Max.: 300 bar(4,351.132 psi)Min.: 25 bar(362.594 psi)
Filtration size
Max.: 80 µmMin.: 30 µm
