نام محصول:
فیلتر گاز
نام انگلیسی:

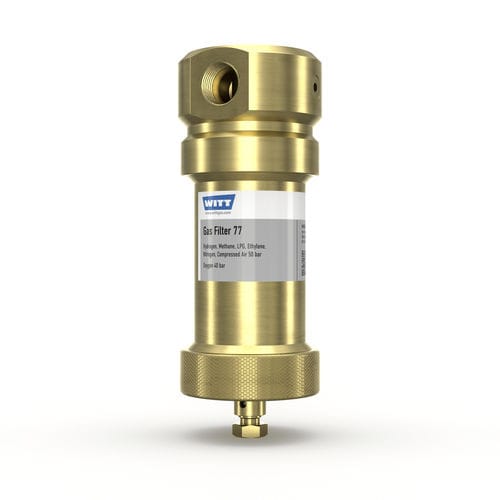

Gas filter 77
برند:
WITT-Gasetechnik
مشخصات:
WITT gas filters for reliable protection against contamination and condensate.
Benefits:
ultra-fine filtering out of mechanical impurities through bronze or stainless steel filter inserts
broad range of uses – compatible with many technical gases
filter inserts in stainless steel with a filtering fineness of approx. 0,5 µm, approx. 10 µm or approx. 40 mµ
filter inserts in bronze especially for O2 with a filtering fineness of 5 µm or 50 mµ, according to EIGA
change of filter possible while installed due to user-friendly design
high flowrate thanks to flow-maximising design
condensate can be collected and removed using condensate drain
easy to install thanks to large choice of connections
reliable filtering performance increases service life of downstream fittings and equipment
Operation / Usage:
particularly well suited to use in laser systems
Gas filter model 77 is designed for installation in pipelines
the gas purifiers with condensate drain must be installed vertically
Maintenance:
the condensate should be drained at regular intervals
the filter inserts must be checked regularly and replaced if necessary
Approvals
Company certified to ISO 9001 and PED 2014/68/EU Module H
Filter inserts of bronze: Designed for Oxygen Service in accordance with EIGA 13/20, CGA G-4.4 and AIGA 021/20: Oxygen Pipeline and Piping Systems
Cleaned for Oxygen Service in accordance with EIGA 33/18, CGA G-4.1 and AIGA 012/19: Cleaning of Equipment for Oxygen Service
توضیحات:
Designed for
gas
Filtration element
cartridge
Applications
industrial, for the food industry, for chemical applications, for the pharmaceutical industry, fine, laboratory, welding, for pipelines, for pipes
Material
stainless steel, brass, bronze
Mounting
threaded
Cleaning
easy cleaning
Fluid specification
condensate
Other characteristics
compact, in-line, high-efficiency, high-flow
Operating pressure
50 bar(725.189 psi)
Filtration size
Max.: 50 µmMin.: 0.5 µm
Fluid temperature
Max.: 60 °C(140 °F)Min.: -40 °C(-40 °F)
