نام محصول:
فیلتر گاز

نام انگلیسی:

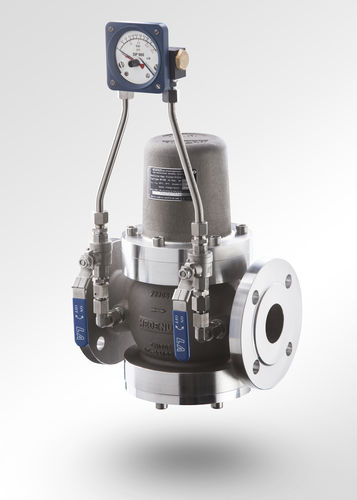

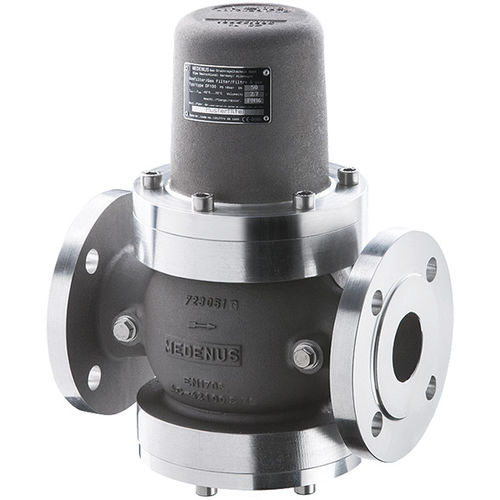

Gas filter DF100

برند:
MEDENUS Gas- Druckregeltechnik GmbH

مشخصات:
The new MEDENUS cellular gasfilter series DF100 are designed for retaining gas impurities, such as dust, rust and other solid particles at a defined location. They are mainly used in gas pressure and measuring stations and upstream of equipment, the function of which would be influenced by contaminants.

These filters are suitable for gases in accordance with DVGW Code of Practice G260/262 and all other neutral and non-corrosive gases. (other gases on request). The series is certified by DVGW,CE and EAC.

توضیحات:
Designed for
air, gas, compressed air, fume, dust

Filtration element
cartridge, basket

Material
polyester, cast aluminum

Mounting
flange

Other characteristics
compact, automatic, high-efficiency, high-flow, modular, high-temperature, horizontal, vertical, ATEX, cellular

Operating pressure
Max.: 16 bar(232.06 psi)Min.: 0 bar(0 psi)

Filtration size
2 µm

Flow
Max.: 40,000 m³/h(1,412,586.669 ft³/h)Min.: 0 m³/h(0 ft³/h)
