نام محصول:

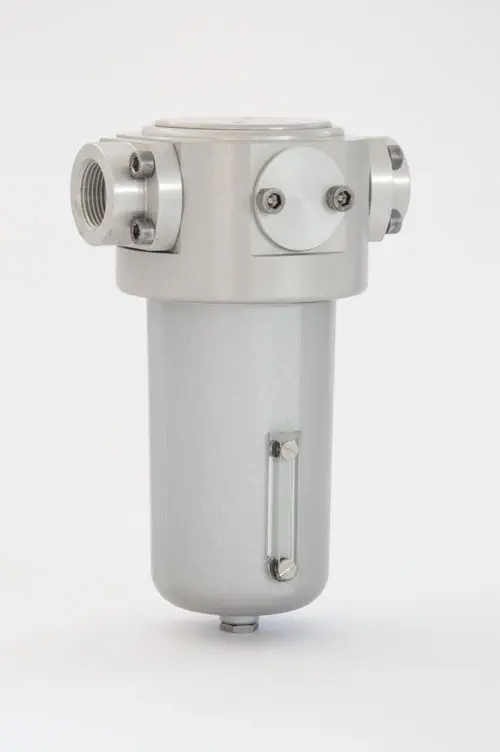

فیلتر گاز 210F2
برند:
IDINSERTDEAL
نام انگلیسی:
Gas filter 210F2
مشخصات:
Designed for
gas, compressed air
Filtration element
cartridge
Filtration method
coalescing
Material
aluminum
Fluid specification
condensate
Other characteristics
automatic, medium-pressure, ATEX, semi-automatic
Operating pressure
Min.: 0 bar (0 psi)
Max.: 30 bar (435.113 psi)
Filtration size
5 µm, 50 µm
توضیحات:
210F2
Medium pressure aluminum filters “serie 10”, suitable for compressed air, gas and liquid
FEATURES
Filter for inlet pressure up to 30 bar (435 psi) in the standard version.
Inlet and outlet standard connections:
3/4”-F;
1”-F;
Connessioni a richiesta:
1”1/4-F;
1”1/2-F
e versioni NPT made by flanges screwed to the body.
Connections with EN or ASME flanges available on request.
Standars filtration rate: 50 µm On request filtration rate: 5µm, or coalescing (0.01 µm/99.99%).
Compressed air condensation drain:
up to 16 bar:
SAI (automatic)
SS (semiautomatic)
up to30bar:
SM (manual drain)
TAPPO
Available the ATEX 2014/34/EU version.
Brand II2GcIICTX
II2DcIIICTX.
For use in potentially explosive atmospheres zones:
1, 21, 2, 22 (not for mines and zone 0).
The product complies with the directive 2014/68/EU PED.
Available units composed of: Filter + Regulator + Lubricator
SPECIFICATIONS
Filter weight: ~2,4 kg (~5,4 lb)
Operating temperature: -20 °C ÷ +60 °C (-4 °F ÷ +140 °F)
Bowl capacity: 500 cc (17 US fl oz)
Automatic drain SAI: the condensate is drained before it reaches the filter cartridge.
Semi-automatic drain SS: the condensate is drained each time pressure is removed from the
system.
Manual drain SM: the condensate is drained by the operator by means of a screw on the
bottom of the cup.
Condensate level display for inlet pressure up to 16 bar
