نام محصول:

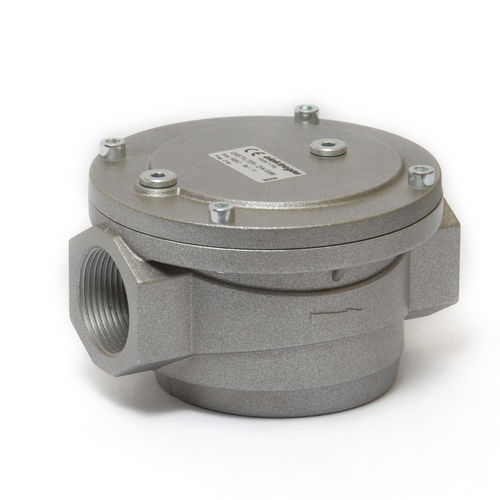

فیلتر گاز
نام انگلیسی:
Gas filter FG
برند:
Elettromeccanica Delta S.p.A.
مشخصات:
Gas filters
Filters for gas pipelines with very high holding capacity of dust and impurities, suitable for protection of devices installed downstream.
The filter cartridge is a steel supported frame covered with a high performance nonwoven made of polypropylene fibres, which satisfy the stringent requirements of Fire Class F1 according to DIN 53438 and thus are self-extinguishing.
Inlet and outlet pressure chambers can be provided with gauges, to connect a gas differential pressure switch to monitor the pressure difference.
When the dust storage capacity is exceeded, the filter element must be replaced.
FGS1-2 models are provided with a washable mesh filter cartridge.
توضیحات:
Designed for
gas, dust
Filtration element
cartridge
Filtration method
pressure
Material
polypropylene, steel
Cleaning
washable
Other characteristics
self-extinguishing
Operating pressure
Max.: 6 bar(87.023 psi)Min.: 0 bar(0 psi)
Filtration size
5 µm, 30 µm, 50 µm
Flow
Max.: 1,120 m³/h(39,552.427 ft³/h)Min.: 6.8 m³/h(240.14 ft³/h)
