نام محصول:
فیلتر هیدرولیک
نام انگلیسی:
Hydraulic filter L
برند:
L
مشخصات:

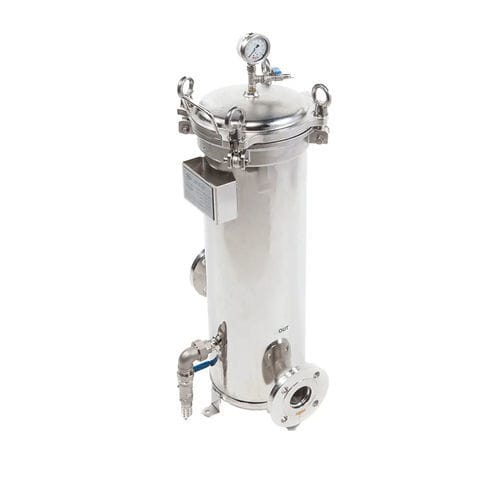

The L-INOX is the equivalent of the L SERIES in stainless steel. Its design allows it to withstand greater pressures and therefore supports greater flow in an equivalent footprint (10 to 40 m³/h). This filter housing accepts FILTECH™ Highflow 20″ and 30″ cartridges, reducing filtration and service costs. The very large filtration area of these cartridges provides minimal pressure drop and excellent retention capabilities.
High performance industrial filter
The L-INOX is a large cartridge filter designed for the industrial sector. Its design incorporates a tilting bolt closure and DN50 PN16 flange connections. The cover is equipped with a ¼” BSP connection for mounting a vent valve or pressure gauge and a ½” flange for mounting the drain valve. The surface is electropolished to facilitate cleaning and improve corrosion resistance.
Designed around FILTECH™ technology.
The filter housing accepts 20” and 30” FILTECH™ Highflow cartridges that reduce filtration and service costs. The very large filter surface area of these cartridges provides minimal pressure drop and excellent retention capabilities.
توضیحات:
Designed for
hydraulic
Filtration element
cartridge
Filtration method
pressure
Applications
industrial, vent
Material
stainless steel, steel
Mounting
flange
Other characteristics
large, anti-corrosion
Operating pressure
10 bar(145.038 psi)
Flow
Max.: 40 m³/h(1,412.587 ft³/h)Min.: 10 m³/h(353.147 ft³/h)
Fluid temperature
75 °C, 100 °C(167 °F, 212 °F)
