نام محصول:
فیلتر هیدرولیک
نام انگلیسی:
Hydraulic filter FT series
برند:
FT series
مشخصات:

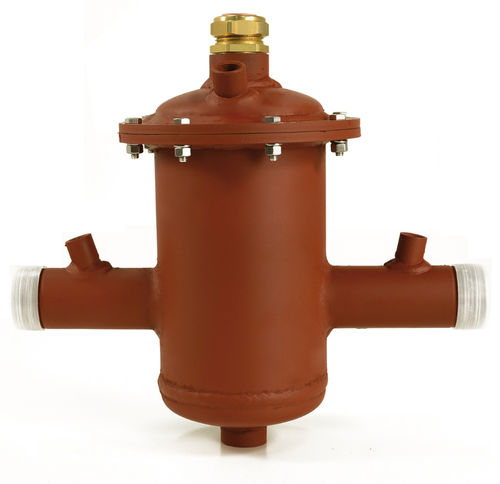

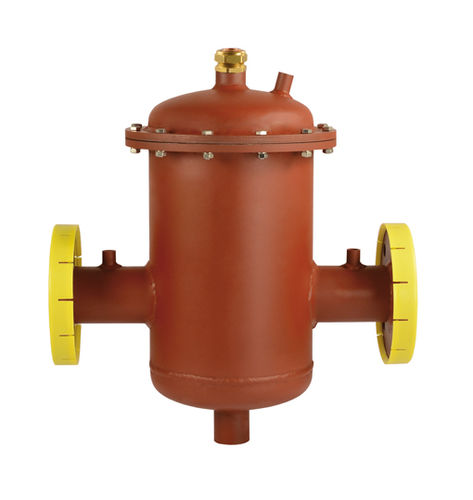

DIAFIL is the filter for heating plant for the prevention of circulators and other system components.
Provided with magnet and manual drain for periodic cleaning.
It can measure the differential pressure thanks to its threaded connections.
DIAFIL is a filter necessary for preserving thermal plants from détérioration due to the presence of impurities. Processing resi-dues and iron dust in circulating water. Thanks to the dedicated drainage sleeve. it is possible to perform an easy and quick clea-ning action without removing the filter’s parts.
Furthermore. the pressure outlets positioned upstream and dow-nstream of the filter allow to understand when DIAFIL filter has to be drained and cleaned. by simpty installing manometers. If pressure switches or pressure transducers are installed to replace manometers. it is possible to remotely signal that the filter needs to be discharged by connecting these sensors to a control unit, üght filter mesh: 1.5 mm (0.9 mm on request).
interception of impurities by mechanical filtration capture of the ferrous impurities in the water
discharge of impurities collected in the filter by manual valve
possibility to measure the filter obstruction by the reading of the pressure differential
توضیحات:
Designed for
hydraulic, dust
Filtration element
sleeve
Filtration method
pressure, magnetic
Applications
process, for pump, for hydraulic applications, for heating systems, for cooling systems, for HVAC installations
Material
carbon steel, iron
Mounting
threaded, flange
Cleaning
easy cleaning
Operating pressure
Min.: 0 bar(0 psi)Max.: 5 bar(72.519 psi)
Filtration size
900 µm
Flow
Min.: 1.6 m³/h(56.503 ft³/h)Max.: 21 m³/h(741.608 ft³/h)
Fluid temperature
Min.: 5 °C(41 °F)Max.: 90 °C(194 °F)
