نام محصول:
فیلتر هیدرولیک
نام انگلیسی:

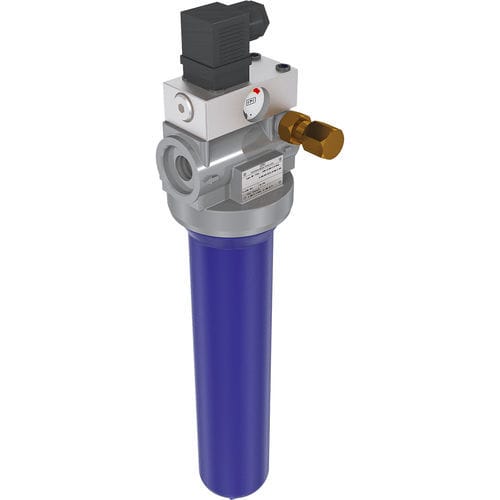

Hydraulic filter 40/160-LE/LEN
برند:
EPE Process Filters & Accumulators Pvt. Ltd.
مشخصات:
The 40/160-LE/LEN series Filters are used for direct installation in the pipeline and provide wear protection of downstream components & systems. Simplex in design for inline mounting the filter inlet & outlet are located the opposite sides. The flow path arrow (inlet to outlet) is marked on filter head.
The Filter head is provided with an element locating spigot.
The Filter bowl is mounted below the filter head and is unscrewed for maintenance.
توضیحات:
Designed for
hydraulic
Filtration element
cartridge
Filtration method
pressure
Applications
industrial, low-pressure
Material
steel, metal
Other characteristics
simplex, in-line
Operating pressure
Max.: 160 bar(2,320.604 psi)Min.: 40 bar(580.151 psi)
Flow
450 l/min(118.877 us gal/min)
Fluid temperature
Max.: 100 °C(212 °F)Min.: -20 °C(-4 °F)
