نام محصول:
فیلتر هیدرولیک
نام انگلیسی:

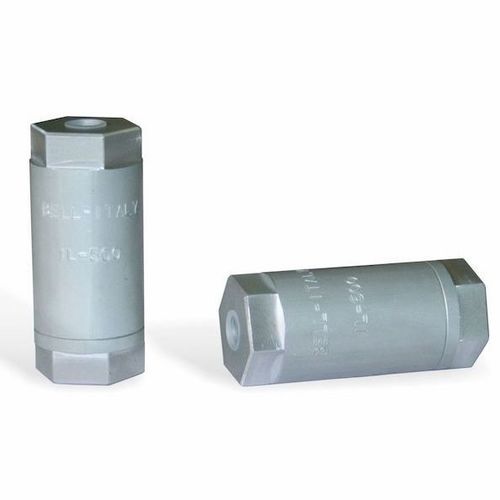

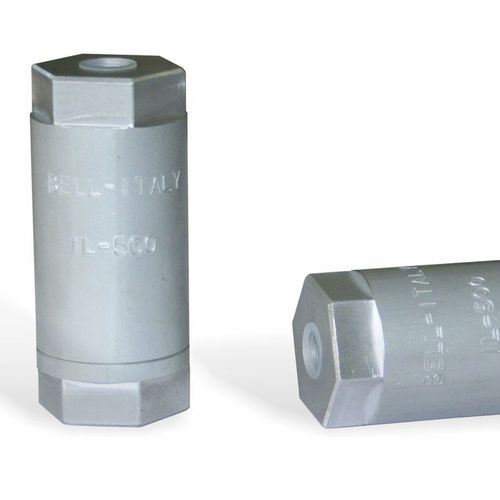

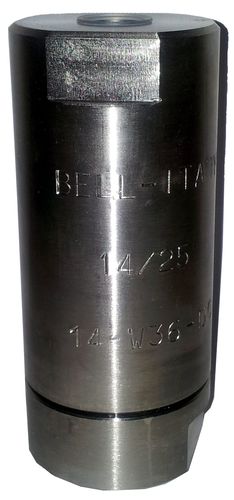

Hydraulic filter IL500 series
برند:
BELL S.R.L.
مشخصات:
Hydraulic In-line filters with bk-ring for filtering at high pressures – 500 Series: main features
Connected to the delivery or discharge line of the hydraulic system, they can filter any impurities in the fluid by retaining even the finest particles of dirt, with a filtering degree up to 10µm.
The 500 Series hydraulic in-line filters for high pressure systems are mostly applied in the agricultural and forestry, earthmoving, Automotive, industrial, marine, wind and transport fields.
500 Series
In line operation
Compact and lightweight
Maximum strength and efficiency
High filtering performance and resistance
With anti-extrusion to overcome even the highest pressure peaks
Interchangeable filter parts
Replaceable or washable filter cartridge in sintered bronze
Reversible filter to ensure filtering in both directions of the flow
Ease of installation
توضیحات:
Designed for
hydraulic, oil
Filtration element
with cartridge
Filtration method
pressure
Applications
for industrial applications, automotive, discharge, high-pressure, for hydraulic applications
Material
aluminum, bronze
Cleaning
washable
Other characteristics
compact, in-line, sintered
Operating pressure
500 bar(7,251.887 psi)
Filtration size
Min.: 10 µmMax.: 80 µm
Flow
100 l/min(26.417 us gal/min)
