نام محصول:
فیلتر هوا
نام انگلیسی:

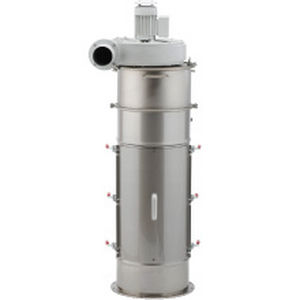

Air filter JEB/JS series
برند:
Zeppelin Silos & Systems
مشخصات:
Applications
Fully automatic operating jet venting filter for the continuous filtering of pneumatic conveying air from continuously operating hoppers and silos. High degree of dust and powdery products
separation from the exhaust air or process gases at constant filter resistance in nearly all technical applications.
Design characteristics
Modular top mounted fine-dust venting filter, consisting of a model-specific number of antistatic pleated cartridges mounted to a solid stainless steel (1.4301) base plate
Filter elements are easily exchangeable from below
Cylindrical filter housing made of stainless steel (1.4301) with maintenance door for installing and removing the filter cartridges on the process air side
Removable filter head designed as clean gas chamber with air jet pipes (ceramic bead-blasted)
Compressed air tank with integrated diaphragm valves and pressure regulator
Controls with integrated solenoid pilot valves 24 V DC
Cleaning with pure, oil-free compressed air up to 6 bar
Flanged design hopper connection
توضیحات:
Designed for
air, dust
Filtration element
plate
Applications
for hopper, vent
Material
stainless steel
Cleaning
continuous
Other characteristics
automatic
Operating pressure
40 mbar, 50 mbar, 60 mbar, 80 mbar(0.58 psi, 0.725 psi, 0.87 psi, 1.16 psi)
Flow
Min.: 0.9 m³/min(31.783 ft³/min)Max.: 31.5 m³/min(1,112.412 ft³/min)
