نام محصول:
فیلتر هوا
نام انگلیسی:
Air filter KFF100 Filtrasan
برند:
TECNICA
مشخصات:

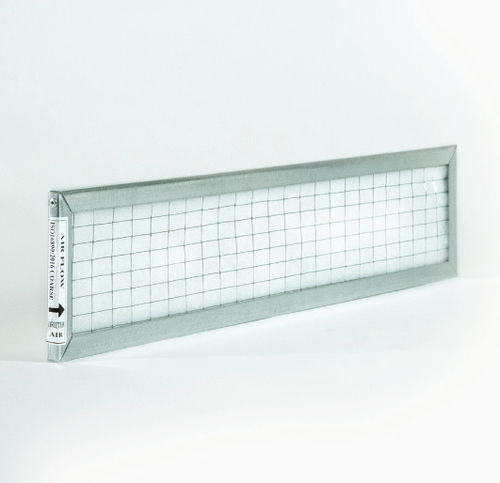

Synthetic flat filter cell far fan coils with U-section galvanised steel support frame and double electrowelded galvanised wire mesh that supports the FiltraSan™ sanitizing filter in thermobonded staple fabric with a basis weight of 100 g/m² and a thickness of 5-10 mm.
TECHNICAL CHARACTERISTICS ANO LIMITS OF USE
EN ISO 16890:2016 Group ISO COARSE
(ePM1 = 4% – ePM2,5 = 13% – ePM10 = 49%)
Efficiency class (CEN EN779-2012): G2
Average gravimetrie efficiency: 70%
Filter fabric basis weight: 100gr/mq
Thickness: 10 mm
Relative humidity: 100%
Recommended final pressure drop: 250 Pa
Maximum pressure drop:: 400 Pa
Dust collection capacity: 180 gr/m²
Recommended frontal velocity: 1,5 m/s
Reaction to fire (DIN 53438/3): class F1
NF-F-16-101: M1
GREEN BUILDING
Contribute to obtain the credits of the major international rating systems for sustainable buildings:
LEED: IP, EA, MR
WELL: MATERIALS, COMMUNITY, INNOVATION
BREEAM: MAN, WST
APPLICATIONS
Fan coils, air treatment units.
PRODUCT DISPOSAL
Dispose of the product by separating the metal part from the filtering part. The CER code for disposal of the metal partis 120101. The CER code for disposal of the filtering part is 150202.
توضیحات:
Designed for
air, dust
Filtration element
panel, wire mesh
Applications
for air treatment units
Material
synthetic, galvanised steel
Other characteristics
flat
Operating pressure
21 Pa(0.003 psi)
Fluid temperature
Min.: 0 °C(32 °F)Max.: 100 °C(212 °F)
