نام محصول:
فیلتر هوا
نام انگلیسی:
Air filter 5300X PLUS
برند:
SAGOLA S.A.U.
مشخصات:
Air from a compressor circulating through the network contains particles and solid impurities, water from the relative humidity of the suction air and burnt oil from the compressor. All these impurities accompanied by compressed air reach the vital parts of tools causing oxidation and premature wear.
For these reasons it is necessary to eliminate impurities by means of a filter, taking into account that the maximum performance with the minimum pressure loss must be obtained. SAGOLA FILTRATION SYSTEMS guarantee the maximum air quality and the minimum pressure loss throughout the line.

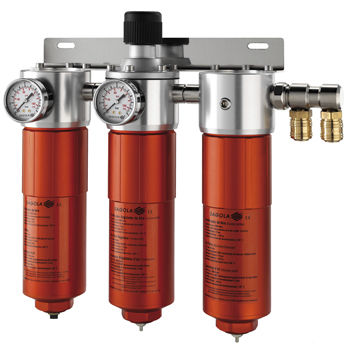

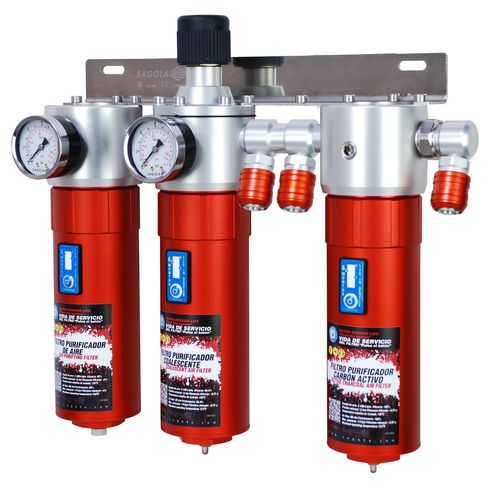

5300X PLUS filter
Double outlet after the coalescent filter and final single outlet
Ideal for waterborne and HS paints
Solutions for lines with organic fumes in the network
Very high quality finishes
Minimum loss of pressure
Maximum air quality

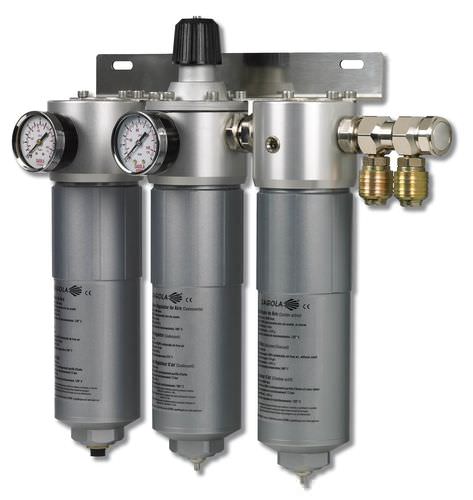

Similar technical and mechanical characteristics than in 5300X.
Model 5300X PLUS offers the maximum filtration level in spray booths and painting lines with high quality air demand. Ideal for waterborne paint and where organic fumes in the network are a problem.
Sinterised brass 8 micron pre-filtration is incorporated, followed by a 0.01 micron coalescent filter and final filtration by a wide surface active charcoal filter. In addition/ to water and impurities, this process eliminates organic fumes and foul air.
توضیحات:
Designed for
air, water, oil, compressed air
Filtration element
cartridge
Applications
for compressors
Material
brass
Operating pressure
Max.: 12 bar(174.045 psi)Min.: 0 bar(0 psi)
Flow
2,500 l/min(660.43 us gal/min)
