نام محصول:
فیلتر هوا
نام انگلیسی:
Air filter PF series
برند:
SagiCofim
مشخصات:

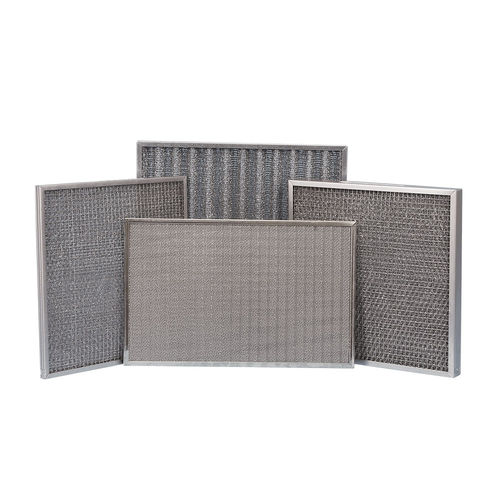

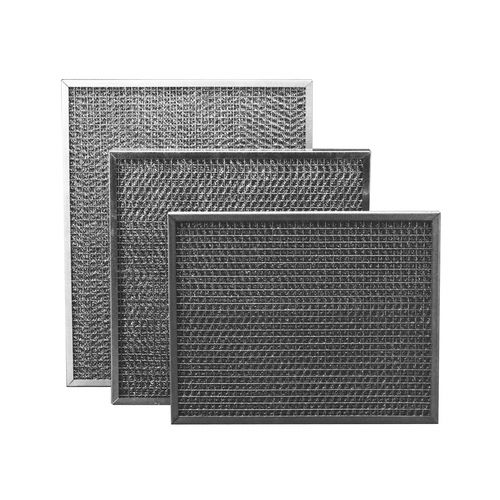

The PFM and PFO/M range of filter panels are used for filtering coarse particles. The filter media is made from a flat anodised metal mesh. They are ideal for use in heavy-duty environments that require high mechanical strength and/or high operating temperatures (up to 250°C). Applications: filtering coarse dust particles, lint and soil in civil and industrial environments:
hot air generators for civil and industrial facilities;
ventilation of electrical engines and industrial machinery;
oily steam separators and filtration walls for industrial facilities;
installation on mobile machinery subject to vibrations.
The PFI panels are made entirely from AISI 304 stainless steel with a micro-expanded sheet metal filter medium; for this reason they are used in kitchen extractor hoods (with temperatures up to 300°C).
Models PFM, PFO/M:
Filter media in galvanised steel mesh;
Frame in galvanised steel sheet;
Two galvanised steel electrowelded containment meshes.
Available in 23 and 48mm thickness.
PFI model:
Filter media in AISI 304 stainless steel mesh;
AISI 304 stainless steel sheet frame.
Two AISI stainless steel electrowelded containment meshes.
Available in 12mm thickness.
On request:
Version ATEX 2GD II T6
Full aluminium version (PFM A, PFO/M A);
Full AISI 304 stainless steel version (PFM S, PFO/M S).
توضیحات:
Designed for
for air, particulate, dust
Filtration element
panel, wire mesh
Applications
industrial, heavy-duty
Material
metal, aluminium
Other characteristics
high-temperature, flat, metal mesh, ATEX
Operating pressure
15 Pa, 25 Pa(0.002 psi, 0.004 psi)
Flow
Min.: 400 m³/h(14,125.867 ft³/h)Max.: 3,000 m³/h(105,944 ft³/h)
Fluid temperature
250 °C, 300 °C(482 °F, 572 °F)
