نام محصول:
فیلتر هوا
نام انگلیسی:

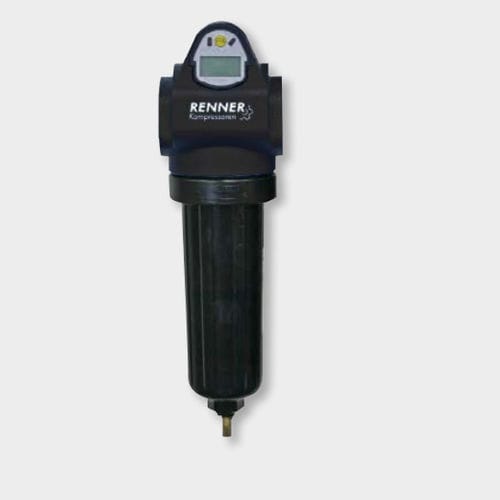

Air filter RF-T 0050 – 0110
برند:
RENNER Kompressoren
مشخصات:
These innovative three-stage filters are a unique combination of three high-performance filters in one housing. The combined submicrofilters, activated charcoal absorbers and high-performance particle filters reliably remove oil aerosols, particles, oil vapors and other hydrocarbons. The flow-optimized filter design and innovative filter technology ensure low pressure losses and high separation efficiency. The economizer integrated in the filter housing serves to monitor filter service life and differential pressure and automatically signals filter element replacement dates for economical and safe operation.
The robust aluminum enclosure is coated with a polyester resin and is therefore particularly resistant to aggressive condensates. The unique bayonet lock simplifies tool-free filter change and prevents the filter from being opened under pressure, thus increasing safety. The filters are available with the steam trap “KA ½” as standard and optionally in a version free of silicone and separating agents.
Advantages
Highest compressed air quality accordancing to ISO 8573-1 thanks to the combination of submicrofilter, activated charcoal absorber and high-performance particle filter
Low pressure loss and cost savings due to flow-optimized filter design
Low space requirement, as three processing stages are accommodated in one filter
Reliable monitoring and economy thanks to integrated economizer
Easy to maintain due to simple filter change via bayonet lock
Secure due to catch in bayonet lock– cannot be opened under pressure
Durable and corrosion-resistant thanks to robust aluminum housing and polyester resin coating
توضیحات:
Designed for
air, water, oil, compressed air
Filtration element
cartridge, resin
Applications
separation
Material
aluminum, polyester
Fluid specification
condensate
Other characteristics
high-performance, low pressure, anti-corrosion, three-stage
Operating pressure
16 bar(232.06 psi)
Flow
Min.: 0.83 m³/min(29.311 ft³/min)Max.: 1.83 m³/min(64.626 ft³/min)
