نام محصول:
فیلتر هوا
نام انگلیسی:

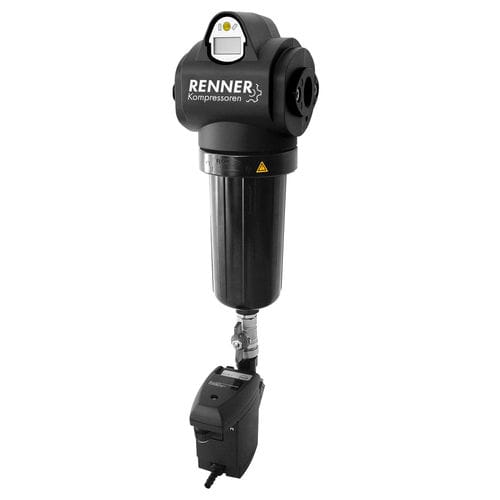

Air filter RF series
برند:
RENNER Kompressoren
مشخصات:
The compressed air filters of the RF series reliably remove and filter oil and water aerosols as well as solid impurities from the compressed air. The flow-optimized filter design and innovative filter technology ensure low pressure losses and high separation efficiency. The robust aluminum enclosure is coated with a polyester resin and is therefore particularly resistant to aggressive condensates. The unique bayonet lock simplifies tool-free filter change and prevents the filter from being opened under pressure, thus increasing safety.
In the standard version, the filter housings are equipped with a mechanically controlled condensate drain. The Superplus version is equipped with an economizer for monitoring filter service life and differential pressure as well as a level-controlled UFM-D steam trap.
Depending on air quality requirements, different filter elements are available:
RF-V / fine filter: Separation efficiency according to ISO 12500-1 and ISO 5011
Particle separation down to 1 micron | Oil separation < 0.2 mg/m³
RF-M / microfilter: Separation efficiency according to ISO 12500-1 and ISO 12500-3
Particle separation < 0.1 micron | Oil separation < 0.02 mg/m³
RF-S / submicrofilter: Separation efficiency according to ISO 12500-1 and ISO 12500-3
Particle separation < 0.01 micron | Oil separation < 0.01 mg/m³
RF-A / activated charcoal filter: Adsorption filter for removing oil vapors and hydrocarbons and odors | oil separation < 0.003 mg/m³
توضیحات:
Designed for
air, water, compressed air
Filtration element
resin
Filtration method
pressure
Applications
fine, safety, separation
Material
aluminum, polyester
Fluid specification
condensate
Other characteristics
low pressure
Operating pressure
16 bar(232.06 psi)
Flow
Max.: 18.33 m³/min(647.318 ft³/min)Min.: 0.58 m³/min(20.483 ft³/min)
