نام محصول:
فیلتر هوا
نام انگلیسی:
Air filter M32V
برند:
M32V
مشخصات:
The M32V media industrial air filters feature a compact design utilizing an innovative polypropylene minipleat air filter designed to improve filter life and reduce maintenance. This compact, antimicrobial, washable filter media extends filter life 3 and a half times over standard multi-pocket bag filters reducing annual operating costs.
Read more about the M32V portable media air cleaner below. Find out about our Local Exhaust Ventilation (LEV) / Source Capture Arm solutions here. Also learn about the replacement parts we carry for our self-contained media air cleaning system.
Featuring the new extended service filter

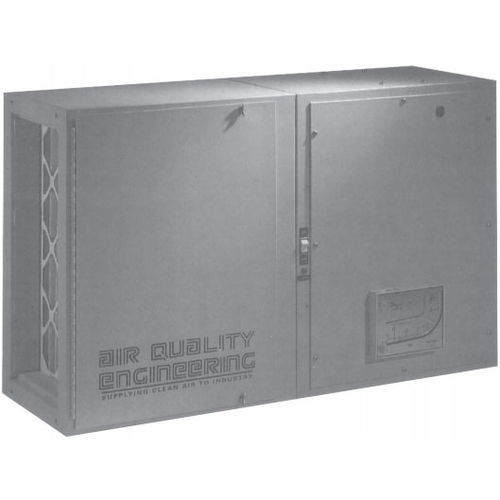

The M32V from Air Quality Engineering, Inc. is a self-contained media air cleaning system designed for use in source capture applications where mobility is desired. The M32V is a compact two-stage filtration unit which will effectively remove a broad range of airborne contaminants including fine dust, smoke, soot, vapors, mist and more at a rate of up to 1250 CFM.
M32V FEATURES & SPECIFICATIONS
DIMENSIONS: : 61″ H x 31.13″ W x 41.25″ L
WEIGHT: : 274.5 lbs installed
324lbs shipping weight
CABINET: : 16 gauge welded steel cabinet with a baked enamel, textured coated finish. Built-in sump and drain connection for oil mist removal. Four heavy-duty swivel locking casters.
MECHANICAL ARM: : 13′ external supported are swings 180° on its axis and reaches from floor to 13′ high. Once this arm is positioned, the hood and hose remain in place until moved.
POWER INPUT: :
Model : Vac : Hz : Phase : Amps
00286 : 120 : 60 : 1 : 13.6
00287 : 208 – 240 : 60 : 1 : 6.8 – 6.6

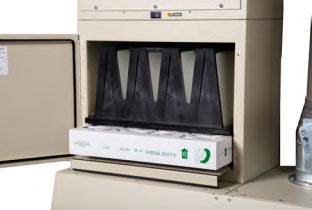

PRIMARY FILTER: : 12″ x 24″ x 12″ Extended Service filter of synthetic filter media
توضیحات:
Designed for
air, dust, oil mist
Filtration element
pocket, bag
Applications
industrial, fine, exhaust, heavy-duty
Material
polypropylene
Cleaning
washable
Other characteristics
compact
Flow
1,250 ft³/min(35.396 m³/min)
