نام محصول:
فیلتر هوا
نام انگلیسی:
Air filter SFL
برند:
Beswick Engineering Co, Inc.
مشخصات:

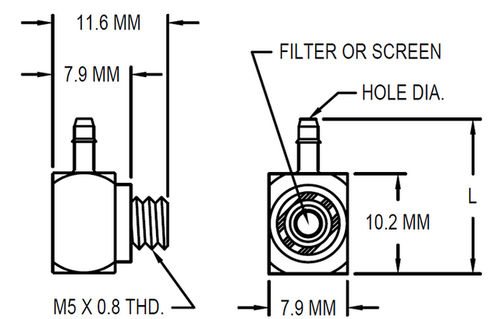

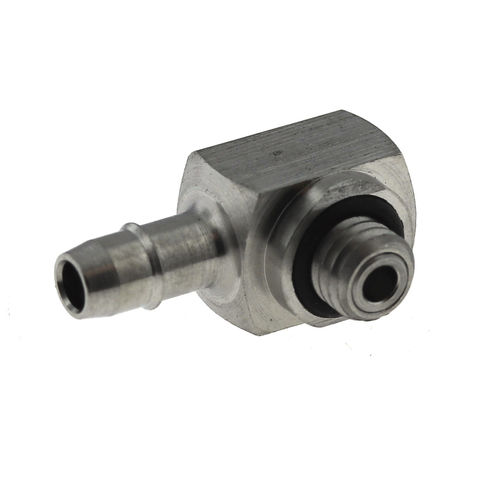

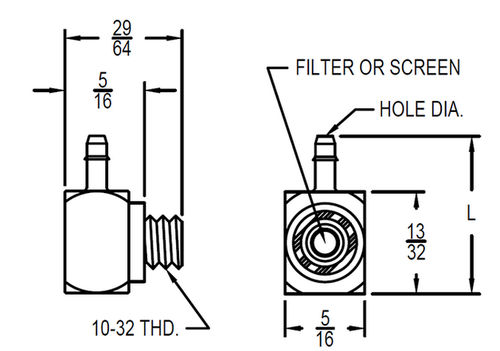

Low profile, adjustable position elbow with 10-32 or M5 thread and built-in barb. A porous sintered filter or wire mesh screen is pressed into the external threaded end of the fitting.
Max Pressure Rating: 100 psig, when used with appropriately sized polyurethane tubing. With a clamp installed, the limiting factor generally becomes the burst pressure of the tubing.
Features
Sintered or wire mesh screen filter element
Captured O-Ring face seal for leak tight installation
303 or 316 Stainless Steel body with 316 Stainless Steel filter
توضیحات:
Designed for
air, compressed air
Filtration element
wire mesh, disc
Filtration method
pressure
Applications
for industrial applications, for air treatment units, for laboratory, for clean rooms, for medical applications, for biopharmaceutical applications, low-pressure, for chromatography
Material
stainless steel
Mounting
threaded
Other characteristics
compact, sintered, adjustable
Operating pressure
100 psi
Filtration size
5 µm, 10 µm, 20 µm, 40 µm, 43 µm
