نام محصول:
فیلتر هوا
نام انگلیسی:
Air filter M32
برند:
Air Quality Engineering
مشخصات:
The M32 media industrial air filters feature a compact design utilizing an innovative polypropylene mini pleat air filter designed to improve filter life and reduce maintenance. This compact, antimicrobial, washable filter media extends filter life 3 and a half times over standard multi-pocket bag filters reducing annual operating costs.
Read more about the M32 self contained air cleaner technical specifications below. Also learn about the replacement parts we carry for our industrial media filtration system.

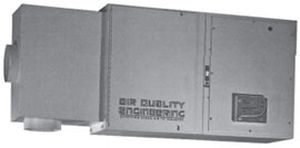

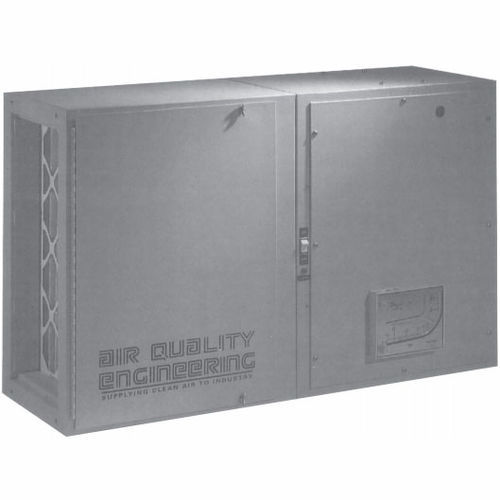

The new M32 from Air Quality Engineering, Inc. is a self-contained media air cleaning system designed for general background or ducted for source capture applications. The M32 includes the new E.S.F. MicroGlass Filter for long filter life and high efficiencies to effectively remove smoke, mist, dust and other airborne contaminants at a rate of up to 1500 CFM.
M32 R&L FEATURES & SPECIFICATIONS
DIMENSIONS: : 27 1/2″ H x 14 1/2″ W x 44″ L
WEIGHT: : 185 lbs installed
220 lbs shipping weight
CABINET: : 16 gauge welded steel cabinet with a baked enamel, textured coated finish.
POWER INPUT: : 100-120 VAC, 60 HZ, 1 phase, 12 amps
208-240 VAC, 60 HZ, 1 phase, 6 amps
PRIMARY FILTER: : Construction: Rigid V-Bank configuration. Element: Mini-pleated microglass fiber.
Dimensions: 11 1/2″ x 23 3/4″ x 11 1/2″. Collection Area: 100 sq. ft.
AIRFLOW/EFFICIENCY: :
Extended Service Filter PN : ASHRAE 52.1992 Filter Efficiency : 1 HP : WG
توضیحات:
Designed for
air, dust
Filtration element
pocket, bag
Applications
industrial
Material
steel, polypropylene
Cleaning
washable
Other characteristics
compact, pleated
Flow
1,500 ft³/min(42.475 m³/min)
