نام محصول:
فیلتر هوا
نام انگلیسی:

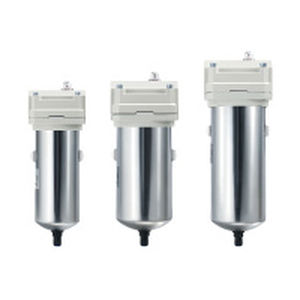

Air filter AFF series
برند:
AFF series
مشخصات:
・Compressed Air Purity Class: ISO 8573
・Increase in an air flow capacity due to lower pressure drop contributing to energy saving
Flow capacity: 14.5 m3/min (ANR)
Increased by up to 20% compared with the current model
・Lightweight: Max. 52% lighter (10.5kg→5.0kg)
Light body weight to thinner stainless steel bowl.
・Space-saving design, Labor-saving in piping!
The AFF series main line filter removes both water droplets and solid particles.
A separate filter for removing water droplets (water separator, AMG series) is not necessary any more. Space and piping work are reduced.
・Easier replacement of the element Stopper function prevents the bowl from falling.
توضیحات:
Designed for
air
Filtration element
cartridge
Filtration method
pressure
Applications
industrial
Material
stainless steel
Other characteristics
high-efficiency
Operating pressure
500,000 Pa(72.519 psi)
Filtration size
0.01 µm, 0.1 µm, 1 µm
Flow
Min.: 7 m³/min(247.203 ft³/min)Max.: 14.5 m³/min(512.063 ft³/min)
