نام محصول:
فیلتر هوای فشرده
نام انگلیسی:
Compressed air filter WAMAIR Vacuum
برند:
WAMGROUP S.p.A
مشخصات:
WAMAIR Vacuum FPN and FPNX are specially designed to meet the requirements of vacuum applications. They are suitable virtually for all industries. Thanks to their hygienic design and food-grade filter elements they comply with the EC 1935/2004 directive which makes them suitable for a variety of applications in food processing (wheat, beans, sugar, rice, coffee, cocoa, diet foods, chilli pepper, etc.).

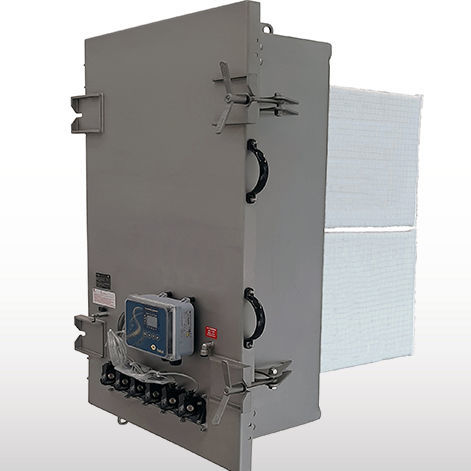

WAMAIR Vacuum is a polygonal Dust Collector range which comes in mild steel, or 304 / 316 stainless steel. Filter elements are inserted horizontally or vertically. A compressed air pulse-jet cleaning system is integrated into the access door.
The WAMAIR Vacuum dust collector range includes a food-grade version whose parts in contact with the dust are certified according to the European regulation. Its design prevents accumulation of residue and makes it easy to clean. In this case, the dust collector is provided with a compliance certificate to the Food Contact Materials Regulation EC 1935/2004.
In case of potentially flammable or explosive materials, a version suitable for use in potentially explosive atmospheres certified according to the ATEX directive can be provided.
Its compact design makes this type of dust collector suitable for applications where limited space is an issue, maintaining efficiency in continuous operation.
WAMAIR Vacuum separates dust particles carried in suspension by an air current using pocket-type filter elements. The dusty air current passes through the filter media, which holds back the dust particles, allowing the clean air to flow through.
توضیحات:
Designed for
compressed air
Filtration element
panel
Filtration method
vacuum
Applications
for the food industry, for dust collectors, for low-pressure applications
Material
stainless steel
Other characteristics
compact, ATEX
Operating pressure
Max.: 6 bar(87.023 psi)Min.: 5 bar(72.519 psi)
Flow
Max.: 4,000 m³/h(141,258.667 ft³/h)Min.: 150 m³/h(5,297.2 ft³/h)
Fluid temperature
Max.: 80 °C(176 °F)Min.: -20 °C(-4 °F)
Filtration surface
Max.: 36 m²(387.5 ft²)Min.: 3 m²(32.29 ft²)
