نام محصول:
فیلتر هوای فشرده
نام انگلیسی:

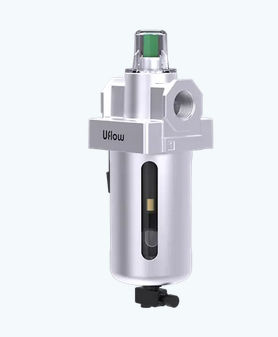

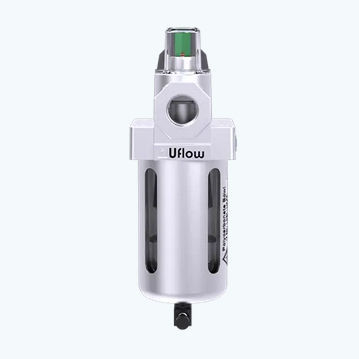

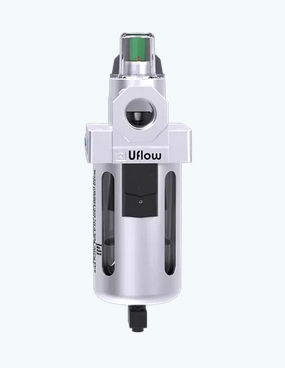

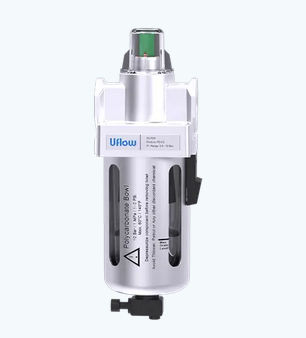

Compressed air filter PD-F series
برند:
UFLOW AUTOMATION
مشخصات:
> – installation: Vertical (as in the picture)
> – Materials of construction: Aluminium, Bronze, Steel, Acetal, Polycarbonate, SS, Nitrile
> – optional accessories: Clamp, Modular mounting kit
> – Note: Supply Pressure 6 bar, pressure drop Ap = 0.5bar (For Standard Models)
Features
Confirm to ISO 5782 -1
Bronze filtering element
Suitable for modular mounting
Separator and shield for efficient moisture separation
Press type Manual drain for easy opération
توضیحات:
Designed for
compressed air
Filtration element
cartridge
Filtration method
pressure
Material
steel, aluminium, bronze, polycarbonate
Other characteristics
modular, vertical
Operating pressure
Max.: 10 bar(145.038 psi)Min.: 0 bar(0 psi)
Flow
800 l/min, 2,250 l/min, 3,500 l/min, 5,000 l/min, 6,500 l/min(211.338 us gal/min, 594.387 us gal/min, 924.602 us gal/min, 1,320.86 us gal/min, 1,717.118 us gal/min)
Fluid temperature
Max.: 50 °C(122 °F)Min.: -10 °C(14 °F)
