نام محصول:
فیلتر هوای فشرده
نام انگلیسی:
Compressed air filter AF series
برند:
OMI Officine Meccaniche Industriali
مشخصات:

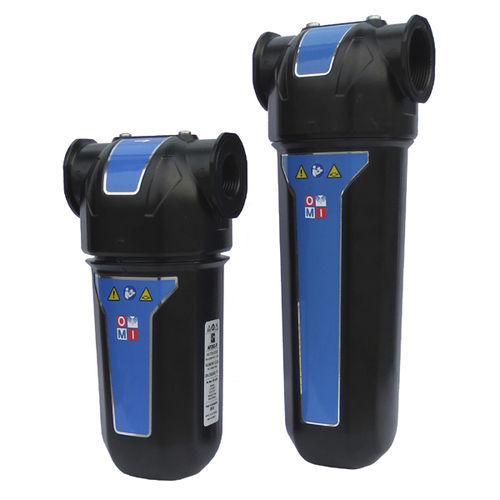

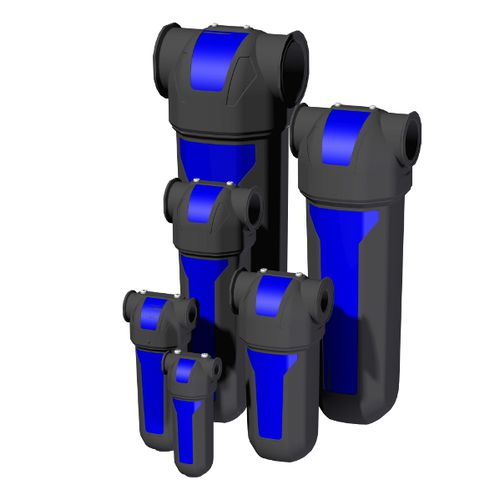

New series of die-cast aluminum filters characterized by innovative solutions currently under consideration for a patent. In particular:
A new design that ensures very low pressure drop;

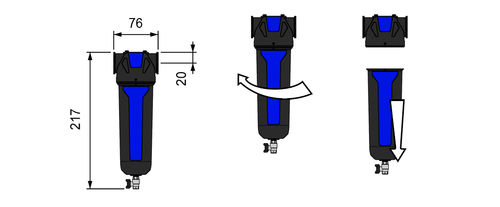

Locking system of the filter element which allows an easy and quick replacement and doesn’t require additional space under the filter or direct contact with the cartridge itself.
Adapter between element and customizable filter head configurable on request.
توضیحات:
Designed for
compressed air
Filtration element
cartridge
Filtration method
pressure
Material
cast aluminum
Other characteristics
low pressure
Operating pressure
7 bar, 20 bar(101.526 psi, 290.075 psi)
Flow
Max.: 2,720 m³/h(96,055.893 ft³/h)Min.: 30 m³/h(1,059.44 ft³/h)
Fluid temperature
20 °C, 100 °C(68 °F, 212 °F)
