نام محصول:
فیلتر هوای فشرده
نام انگلیسی:
Compressed air filter P-VAC series
برند:
Nitrogenium Innovations Filteration India
مشخصات:

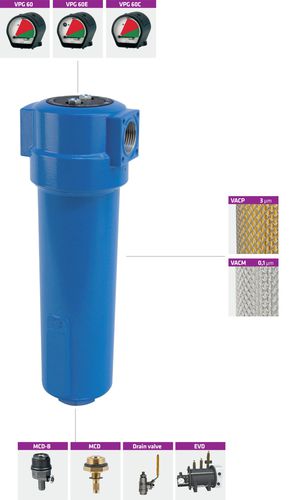

P-VAC filters are designed for protection of vacuum pumps. These filters are optimized for high-efficient removal of solid particles and other contamination from the suction side of vacuum pumps preventing damage to the pump. Two filtration stages are available for P-VAC filters. Rough prefilter “VACP” removes bulk liquid and large solid particles, while high efficiency microfilter VACM removes very fine impurities which may damage the pump.
Characteristics
operating pressure – 20 to 2000 mbar(abs)
volume flow rate – 7,5 to 345 Nm3/h
connections – 3/8’’ to 3’’
operating temp. range – 1,5 to 65 °C
standard colour – RAL 5012
Applications
• vacuum pumps
توضیحات:
Designed for
compressed air
Filtration element
cartridge
Applications
for vacuum pumps
Other characteristics
high-efficiency
Operating pressure
Max.: 2,000 mbar(29.008 psi)Min.: 20 mbar(0.29 psi)
Flow
Max.: 345 m³/h(12,183.56 ft³/h)Min.: 7.5 m³/h(264.86 ft³/h)
