نام محصول:

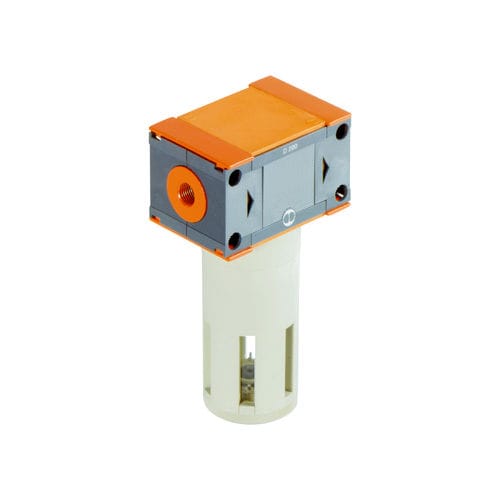

فیلتر هوای فشرده
نام انگلیسی:
Compressed air filter FIL series
برند:
METAL WORK
مشخصات:
The Job of the filter is to remove any solid or liquid impurities from the air generated by the compressor. Incoming air is rotated by the centrifuge unit. The heaviest liquid and solid particles are projected against the walls of the container and forced to adhere to it. As they accumulate they form drops that deposit on the bottom by gravity. The remaining solid particles are held back by the porous element depending on the filtering threshold. The accumulated condensate is drained out through the drain – automatically when there is no pressure in the filter, or by hand pressing the button. An automatic drain is available. It automatically eliminates condensate from the container whenever necessary, whatever the pressure.The transparent windows allow to view the level of condensation at 360°
Quantity per package:0
Minimum order quantity:0
Unit of measure:items
Boul capacity (cm3)22 cm3
Drain (Type)RMSA – SAC
Max temperature (°C)50
Min temperature (°C)-10
Threaded port1/4″
توضیحات:
Designed for
compressed air
Filtration element
basket
Filtration method
centrifugal
Material
aluminum
Mounting
threaded
Fluid specification
condensate
Other characteristics
automatic, transparent
Operating pressure
Max.: 15 bar(217.557 psi)Min.: 0 bar(0 psi)
Filtration size
5 µm, 20 µm, 50 µm
Flow
Max.: 20,000 l/min(5,283.441 us gal/min)Min.: 1,400 l/min(369.841 us gal/min)
Fluid temperature
50 °C(122 °F)
