نام محصول:
فیلتر هوای فشرده
نام انگلیسی:

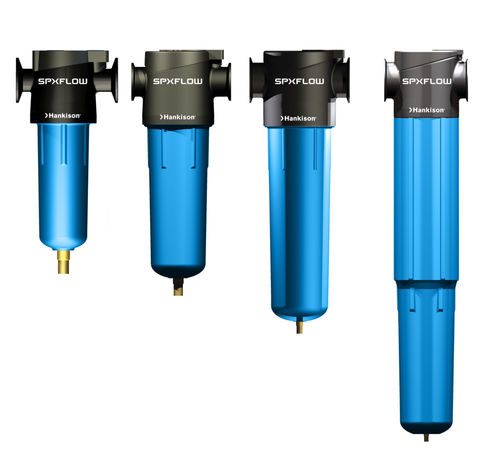

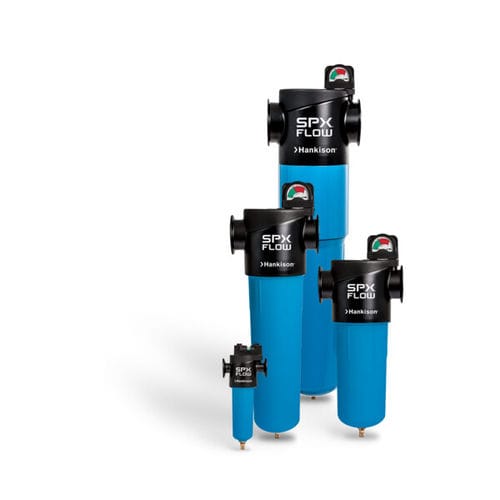

Compressed air filter NGF series
برند:
HANKISON
مشخصات:
As energy costs continue to escalate globally air treatment manufacturers are challenged to design equipment that is cost effective, delivers optimum performance and consumes less energy.
Hankison’s Next Generation Filter Series is the solution for efficiently removing contamination from compressed air systems while saving energy.
The NGF Series employs technological advancements in filtration materials and design to ensure premium compressed air quality and low operational costs. Every filter is tested and rated delivering certifiable performance according to ISO 8573-1 air quality standards. The NGF Series is tested to ISO 12500. Test results provide certifiable performance data based on defined challenge concentrations.
A choice of Five Element Grades allows you to design a system that delivers the air quality you require:
Grade SF – Bulk Liquid Separator/Filter
Grade PF – General Purpose Filter
Grade HF – High Efficiency Oil Removal Filter
Grade UF – Ultra High Efficiency Oil Removal Filter
Grade CF – Oil Vapor Removal Filter
feature:

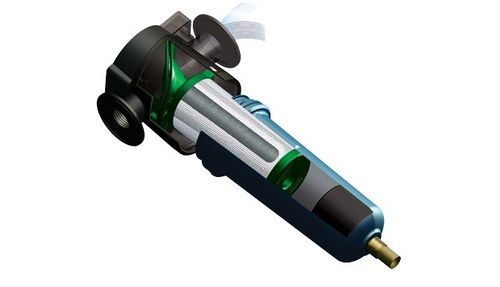

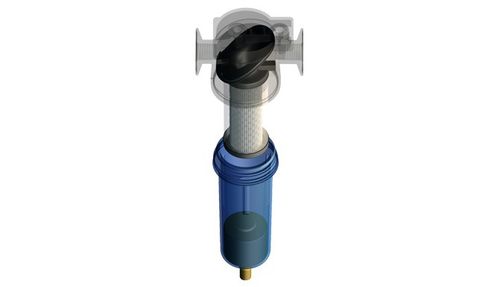

Patented Venturi-Wave™ element design promotes a turbulent-free transition for compressed air entering the element
Deep bed pleated, high performance media

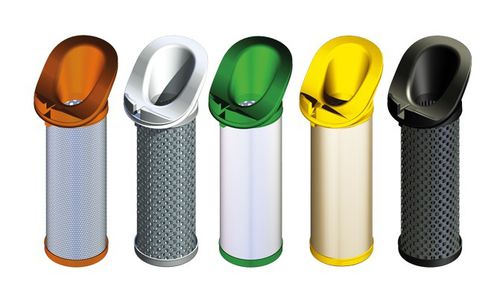

Element grade identification with color coded end caps printed with genuine Hankison filter element replacement part number
Scuplted housing design with flanged inlet and outlet connections for easy installation
Die cast aluminum, chromated housings are coated with a polyester epoxy powder coat finish for corrosion resistance
Internally ribbed bowl promotes condensate drainage
توضیحات:
Designed for
compressed air
Filtration element
cartridge
Filtration method
pressure
Applications
for separation
Material
polyester
Other characteristics
high-efficiency
Filtration size
Min.: 0.01 µmMax.: 3 µm
Flow
Min.: 34 m³/h(1,200.699 ft³/h)Max.: 2,549 m³/h(90,017.085 ft³/h)
