نام محصول:
فیلتر هوای فشرده
نام انگلیسی:
Compressed air filter GDC 55
برند:
GECAM SRL
مشخصات:

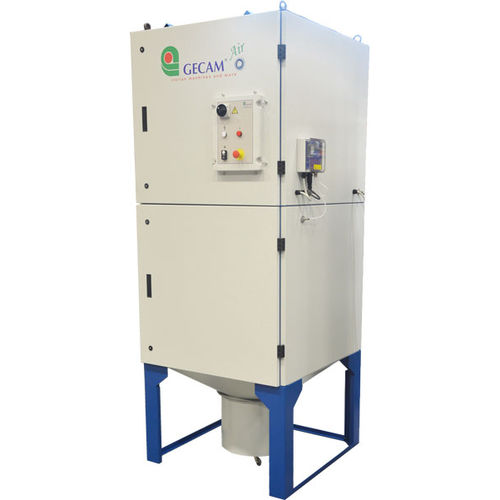

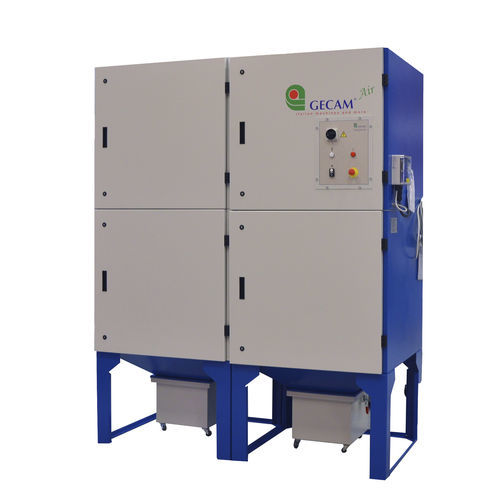

Complete range of self-cleaning compressed air cartridge filters made of steel, CE marked and certified. Designed to meet different filtration needs, attractive design, simple to install and with limited energy consumption, allows an output dust concentration of less than 5 mg / Nm3s.

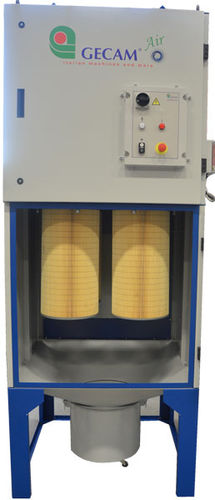

Polluted air enters the filter through a pre-chamber which helps to separate the coarser particles; then the air flow passes through the cartridges depositing the dust on the outside of the cartridges while the clean air is discharged from the filter head. Automatic counter-current cleaning system of the filter media carried out by compressed air, an electronic cyclic panel provides for sequential cleaning of the cartridges. Lower door for quick cartridge extraction and upper door for lung and ventilator maintenance. Filter cartridges in cellulose microfibre or polyester from 7 – 10 -20 m².
Complete with electrical power and control panel with a degree of protection not less than IP55, with automatic main switch, front panel selector for starting in manual-automatic mode and selector for local or remote control of functions.
توضیحات:
Designed for
compressed air, dust
Filtration element
cartridge
Material
polyester, steel, cellulose fiber
Cleaning
self-cleaning
Other characteristics
automatic
Operating pressure
2,549.729 Pa(0.37 psi)
Flow
4,000 m³/h(141,258.667 ft³/h)
