نام محصول:
فیلتر هوای فشرده
نام انگلیسی:
Compressed air filter FM
برند:
FM
مشخصات:

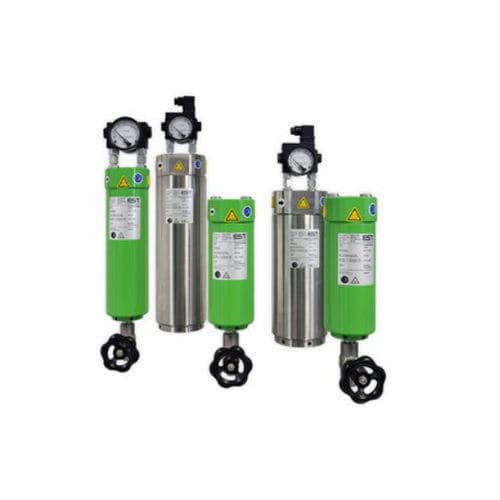

We offer four sériés of housings for high-pressure applications up to 350 bar: FCA, FWS, FMA and FMS high-pressure filters. They are ail suitable for use with compressed air and
technical gases.
Passivated inside and out, these high-quality filters guarantee an above-average service life. By the way: We mechanically manufacture the filter housings of the FMA and FMS series from solid material. Without cavities in the material or possible stresses, we effectively prevent bursting in the high- pressure range in this way.
Our robust high-pressure filter housings are equipped with overwind protection and internai sealing as standard. This means, we avoid pressing or overwinding the thread during
the manufacturing process. Of course, we also incorporate connections for accessories and retrofit solutions in each of our high-pressure filters, e.g. differential pressure gauges or
condensate drains. In this way, these compressed air filters remain sustainable in the long term.
توضیحات:
Designed for
compressed air
Filtration element
cartridge, activated carbon
Filtration method
pressure, coalescing, centrifugal, cyclone
Applications
industrial, process, for high-pressure applications, high-pressure, coarse pre-filtration, for purifying
Material
stainless steel, steel, metal
Mounting
threaded, thread connection
Fluid specification
for technical gas
Other characteristics
high-performance, small, corrosion-proof, with differential pressure measurement
Operating pressure
Max.: 350 bar(5,076.321 psi)Min.: 50 bar(725.189 psi)
Flow
Max.: 4,290 m³/h(151,499.92 ft³/h)Min.: 380 m³/h(13,419.573 ft³/h)
Fluid temperature
Max.: 80 °C(176 °F)Min.: -10 °C(14 °F)
