نام محصول:
فیلتر هوای فشرده
نام انگلیسی:

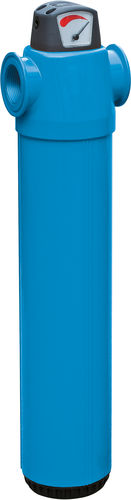

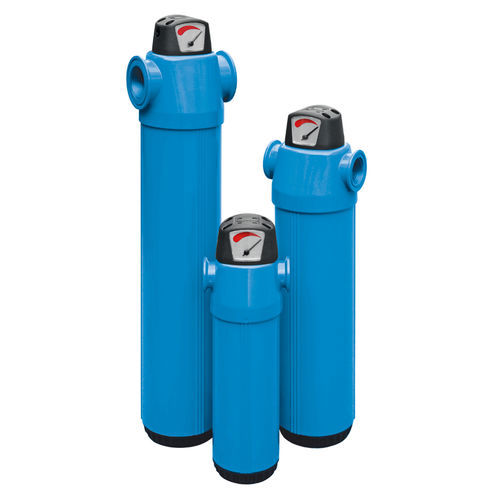

Compressed air filter G series
برند:
Drytec
مشخصات:
Drytec Compressed Air Filters have been designed to meet all requirements of the compressed air filtration world. These air filters provide more comfortable usage for end users with an increased endurance, higher efficiency at lower pressure drop and more port size options.
Filtration
Due to our usage of deep pleating technique, the filtration area is significantly increased remarkably, which leads to a better filtration and higher dirt holding capacity. Drytec Compressed Air Filters have been designed to remove air borne contamination in compressed air stream, delivering energy efficient operation and reliable performance.
Features
The air filters have four efficiency ratings, removing contaminants. A protected auto float drain (2 mm orifice) is standard for optimal and reliable removal of liquid contaminants.
These air filters have a zero-porosity aluminium and durable epoxy powder-coat finish, along with a corrosion-resistant internal coating for a long service life. Filter combinations are configured to meet specific application requirements. Filters comply with PED and perform as per related ISO 8573 standards. These filters may be equipped with differential pressure gauges for easy maintenance and energy efficiency.
Drytec compressed air filters are always recommended with this system.
توضیحات:
Designed for
compressed air
Filtration element
cartridge
Filtration method
pressure, coalescing
Applications
industrial
Material
aluminum
Other characteristics
in-line, pleated
Operating pressure
20 bar(290.075 psi)
Flow
Min.: 20 m³/h(706.293 ft³/h)Max.: 2,620 m³/h(92,524.427 ft³/h)
