نام محصول:
فیلتر هوای فشرده
نام انگلیسی:

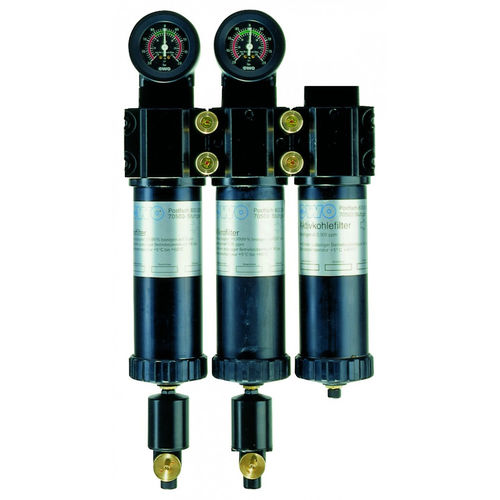

Compressed air filter vma
برند:
Armaturen- und Autogengerätefabrik ewo Hermann Holzapfel GmbH & Co. KG
مشخصات:
Compressed-air treatment for the most critical requirements
Cleaning of compressed air with standard filters is insufficient for many applications. For cases of this kind, the filter system V-M-A, available as single units or combinations, offers a wide range of filters to meet all requirements, from technical-clean air working equipment via process air to odour-free air for breathing.
Housing assembled from V-M-A modular system for direct flange mounting with sizes I and II. Two sizes
of housing and 6 different sizes of filter element. Connecting threads from G¼ to G2 in
accordance with DIN-ISO 228. Housings and bowls are made of aluminium, plastic-coated or anodised, protected against corrosion, attractive appearance, easy to clean.
Differential pressure gauges. Indicates the pressure drop in filters. We recommend that the filter element is changed when the pressure drop exceeds 0,6 bar (red zone). Full exploitation of service life of filter saves money-timely replacement stops wastage of energy. Gauges can be fitted as desired to be readable from front or rear (double scale).
Kit for bracket mounting of single units and combinations available as an accessory.
Filter elements. For every size of filter-three different elements of identical dimensions.
Fully automatic drain valve. Fitted as standard to pre-filters and micro-filters. Mounted outboard, easily accessible for maintenance. Minimum operating pressure 4 bar.
Manually-operated drain valve. Fitted as standard in the form of a drain screw in the case of activated charcoal-filters, since these are not subject to condensation.
توضیحات:
Designed for
compressed air
Filtration element
cartridge
