نام محصول:

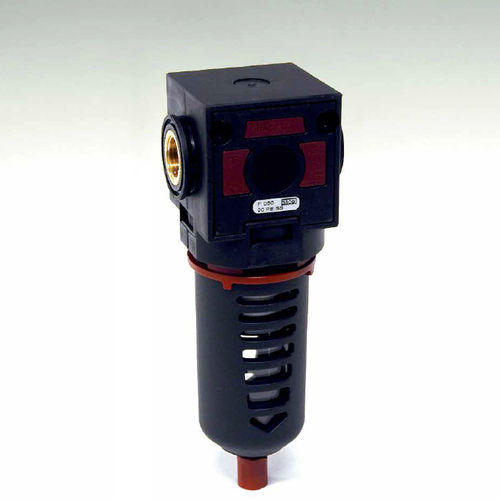

فیلتر هوای فشرده
نام انگلیسی:
Compressed air filter 050, 052 series
برند:
050, 052 series
مشخصات:
* High level of condensate separation.
* Low pressure drop.
* Can be wall mounted by using the relative holes.
* Quick bowl connection by means of the safety ring mechanism.
* Filtering degree: 5 micron and 20 micron (standard).
* Integrated manual and semiautomatic condensate drainage (SS) or “SA” and “SAD” automatic versions.
* Bowl in toughened polyamide with outer bowl guard.
* Collected quantity of condensate: 42 cc.
* Maximum operating pressure 12,5 Bar (1,25 MPa).
* Max. ambient temperature (at 10 bar) 50°C (122°F).
* Max. torque inserts G3/8” IN-OUT: 60 N·m.
* Max. torque inserts G1/2” IN-OUT: 80 N·m.
* Reference flow rate (P=10 Bar – Δp=1 Bar): 2500 Nl/min.
* Weight: 0,225 Kg.
* Product complies with Directive 2002/95/CE (RoHS).
توضیحات:
Designed for
compressed air
Filtration element
basket
Applications
separation, low-pressure
Fluid specification
condensate
Other characteristics
semi-automatic
Operating pressure
Min.: 0 bar(0 psi)Max.: 12.5 bar(181.297 psi)
Filtration size
Min.: 5 µmMax.: 20 µm
Flow
2,500 l/min(660.43 us gal/min)
