نام محصول:
فیلتر مغناطیسی

نام انگلیسی:

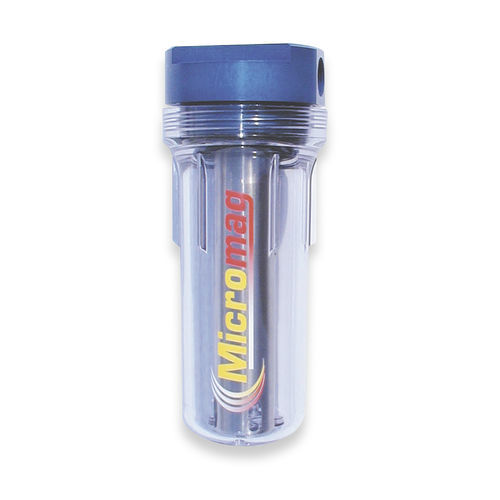

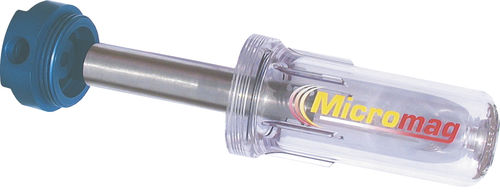

Magnetic filter Micromag MM series

برند:
Assfalg GmbH

مشخصات:
The magnetic filter Micromag provides for enormous filtration capacity with liquids, in particular with lubricating coolants. Magnetic particles down to 0.2 μm are filtered out by the permanent magnetic core. Sporadically appearing and non-magnetic parts are filtered out by means of the coagulation as well. The filter can be easily incorporated in the coolant circuit through pipe threads.

Applications

– Grinding, honing and lapping machines
– CNC-machines
– Fine-finishing machines
– Electric discharge machines
– Laser cutting machines
– Building and industrial heating systems
– Pump protection

Features

– Huge filtration capacity

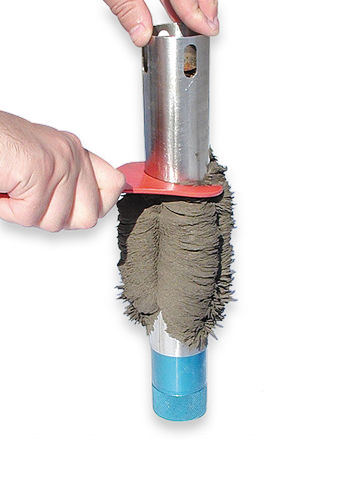

– Easy and fast cleaning
– Temperature range: +5°C to +50°C
– Maximum operating pressure: 12 bar (Special designs from 0 – 80 bar are possible)
– No extra costs – no additional disposal of filter media

Advantages

– Improved drilling, grinding and electric discharge results
– Longer lifetime of liquids
– Prolonged lifetime of tools
– Shorter maintenance and down times

توضیحات:
Designed for
liquid

Filtration element
cartridge

Filtration method
magnetic

Applications
for machine tools, for lubrication systems, for grinding machines, for EDM

Mounting
threaded

Fluid specification
coolant

Operating pressure
Max.: 12 bar(174.045 psi)Min.: 0 bar(0 psi)

Filtration size
0.2 µm

Flow
70 l/min, 100 l/min, 150 l/min(18.492 us gal/min, 26.417 us gal/min, 39.626 us gal/min)

Fluid temperature
Max.: 50 °C(122 °F)Min.: 5 °C(41 °F)
