نام محصول:
فیلتر فشار دهنده
نام انگلیسی:
Strainer filter 206 series
برند:
SFERACO
مشخصات:

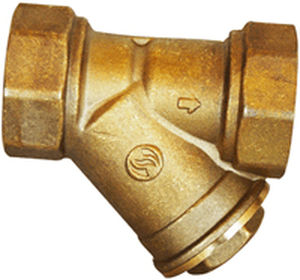

The 206 Series is a series of Y-strainer manufactured by Sferaco. Equipped with a removable stainless steel filter and a female threaded BSP, it has the ability to deliver a maximum pressure of 16 bars at a temperature ranging between 10°C to 120°C. In addition, it can be used for different applications including the water distribution.
SPECIFICATIONS :
• – Removable stainless Steel filter
• – Female / female type
• – Horizontal or vertical position (respect the flow direction indicated by the arrow )
• – Mesh 8.5/10° mm ( 850 p )
USE:
• – Water distribution and watenng
• – Min Température Ts : – 10°C
• – Max Température Ts :+ 120°C
• – Max Pressure Ps : 16 bars up to DN 2*. 10 bars over
standards:
• – Fabrication according to ISO 9001 :2015
• – DIRECTIVE 2014/68/EU : Products excluded from directive ( Article 1, § 2.b )
• – French water agreement A.C.S. N° 16 ACC LY 255
Threaded female BSP cylindrical according to ISO 228-1
توضیحات:
Designed for
water
Filtration element
with cartridge, strainer
Material
brass, stainless steel
Mounting
threaded
Other characteristics
Y, vertical, horizontal
Operating pressure
16 bar(232.06 psi)
Filtration size
850 µm
