نام محصول:
فیلتر فشار دهنده
نام انگلیسی:
Strainer filter ASF
برند:
Diflon
مشخصات:
The flow path through the filter insert is a larger area than the original pipe cross-section. This minimizes possible pressure loss.
Corrosion Résistant Filter Insert

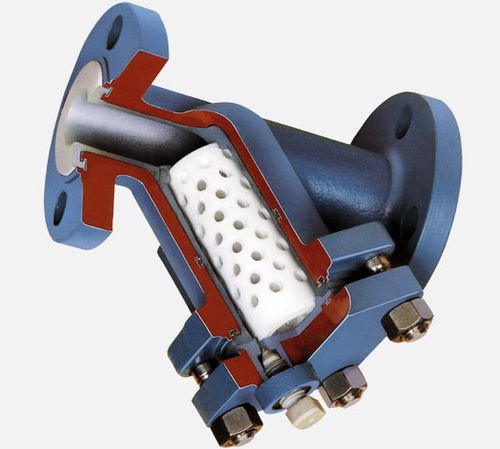

The Insert consists of two perforated PTFE cylinders with an ETFE filter screen in between. This design offers the same outstanding corrosion résistant properties as the FEP or PFA lining material. Standard mesh Is 60 (300 micron). Optional mesh: 169 (100 micron): 35 (500 micron): 19 (1,000 micron). Other mesh openings on request.
Easy Servicing and Maintenance
The lilter Insert can be changed or easily cleaned without removing the strainer from the line. For added operator salety and convenience, an optional bail valve may be specified in place ol the PTFE plug. The residual fluid In the insert area can be removed by means ol the PTFE drain plug. This can be done prior to removing the access flange when changing or cleaning the lilter.
توضیحات:
Filtration element
strainer
Mounting
flange
Other characteristics
Y, PTFE-lined
Operating pressure
16 bar(232.06 psi)
Filtration size
100 µm, 300 µm, 500 µm, 1,000 µm
