نام محصول:

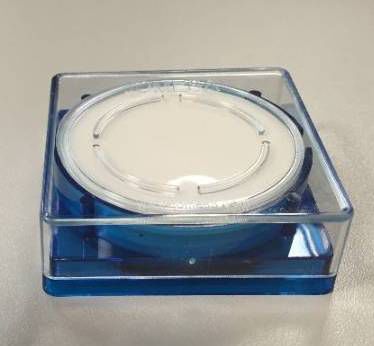

فیلتر غشایی
نام انگلیسی:
Membrane filter
برند:
JOMESA Meßsysteme
مشخصات:
•Cleanliness
Orignally filters were produced for filtration,so cleanliness of the membrane itself was no issue, and filter manufacturer did not care for remaining particles on filter membranes.
ISO 16232 and VDA Vol.19 give clear instructions about the blank value, which is the limit of contaminaion of the cleanliness analysis equipment itself. Filters are of course part of the analysis equipment and thus contribute to the blank value.
In cleanliness analysis, filter cleanliness is of importance and should be specified.
JOMESA met this challenge since 2015 by cleaning, lasercutting and packing the filters in a cleanroom class 7 (ISO 14644).
JOMESA controls cleanliness of filter production with a dedicated optical (JOMESA HFD) and SEM (JOMESA PSE) systems.
•Porosity
SEM images of typical filter membranes
Open mesh filters (> 15µm poresize) can be easily measured by image analysis.They can be used to separate different particle sizes:
Mesh filters with 20µm holes (pores) size mesh will allow all particles smaller than 20µm to pass and hold back all particles larger.
توضیحات:
Designed for
liquid
Filtration element
membrane
Material
nylon, polyamide, cellulose fiber, PET
Cleaning
self-cleaning
Operating pressure
Min.: 0 bar(0 psi)Max.: 800 bar(11,603.019 psi)
Filtration size
Min.: 0.8 µmMax.: 20 µm
