نام محصول:
فیلتر شراب

نام انگلیسی:

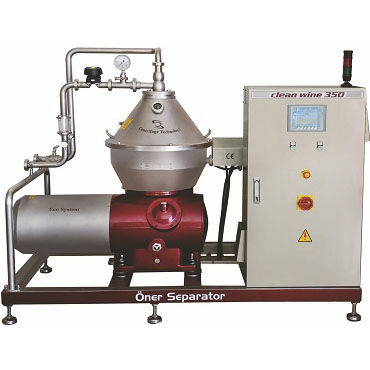

Wine filter CLEAN WINE 450

برند:
Oner Separator San. ve. Tic. Ltd. Sti.

مشخصات:
WORKING PRINCIPLE OF CLEAN WINE

• CLEAN WINE 450 serial has automatic drainage system. The dangerous accumulative organisms (mud) are thrown away with the help of movable pulley in operator board which is in automation unit of automatic drainage system in wanted time period. The movable pulley performs its movement through the operation water by controlling solenoid valves with signals send from PLC.

• CLEAN WINE 450 pulley material is made of special stainless steel Duplex (DIN 1.4462) by using last technology. This material is produced as having a high endurance, corrosion and mechanic durability by subjecting it to special calorific process to take tensile.

• CLEAN WINE 450 serial can directly transfer the power without lining to the shaft with its sprocket system thanks to the last technology invertor (speed control) unit. In this way, the machine works extremely silent.

• As the machines have got soft input system, it works with drainage system in high performance without deforming the oil globules.

• The output of milk and cream has got centripetal pump, so there is no need an extra pump for compressed output.

• The connectors of the machine are proper to ISO NORM.

• All the equipments which contact with the product and the panel on which PLC control unit is mounted is made of stainless 304-316 steel, and have a designment which provides sound isolation.

• In the control unit, there is touch panel that electric current, pulley turning speed, drainage time period, the time remained for drainage can be seen.

• All the equipments are made of stainless steel, mounted on the platform.

توضیحات:
Designed for
for wine

Material
stainless steel

Other characteristics
automatic, duplex

Operating pressure
Max.: 2 bar(29.008 psi)Min.: 1.5 bar(21.756 psi)

Flow
Max.: 4,500 l/h(1,188.774 us gal/h)Min.: 4,000 l/h(1,056.688 us gal/h)
