نام محصول:
فیلتر درون خطی
نام انگلیسی:

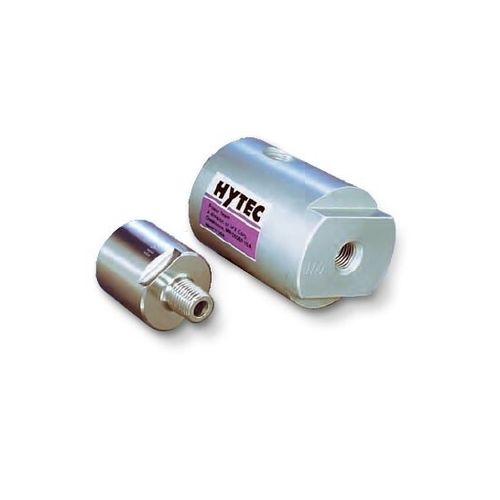

In-line filter 100845
برند:
SPX Hydraulic Technologies
مشخصات:
No. 100845
This high-pressure filter is intended for use in systems where there is flow in only one direction such as pressure or return lines between the power source and control valve. This in-line filter has a removable/replaceable sintered bronze element. The element is accessible without removing the filter body from the installation.
No. 100857, 100919
These high pressure, non-bypass, in-line filters are suitable for both unidirectional and bi-directional circuits. This allows the filter to be installed in single acting or double acting circuits downstream from the control valve where the fluid flows in both directions. It’s specially reinforced, stainless steel mesh filter element resists fatigue from pressure spikes. Both are ideal for use in pallet coupling circuits to protect components from contaminants introduced at the couplers. The No. 100857 is ideally suited for Hytec’s manual pallet valve (100223). Simply remove the coupler from the pallet valve and install this filter between the valve and coupler.
Features
• – 5,000 psi maximum operating pressure
• – Low pressure drop
• – Removable/replaceable elements
توضیحات:
Designed for
hydraulic
Applications
high-pressure
Material
bronze
Other characteristics
in-line
Operating pressure
5,000 psi
Filtration size
Max.: 25 µmMin.: 10 µm
