نام محصول:
فیلتر درون خطی

نام انگلیسی:
In-line filter F960 series

برند:
AIR Logic

مشخصات:

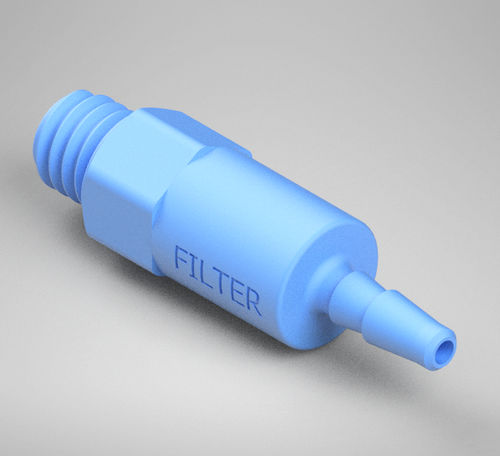

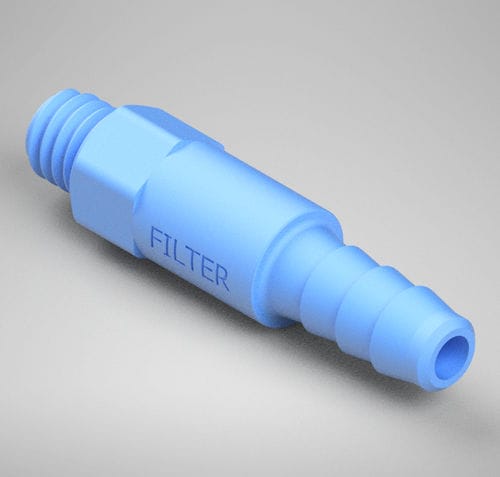

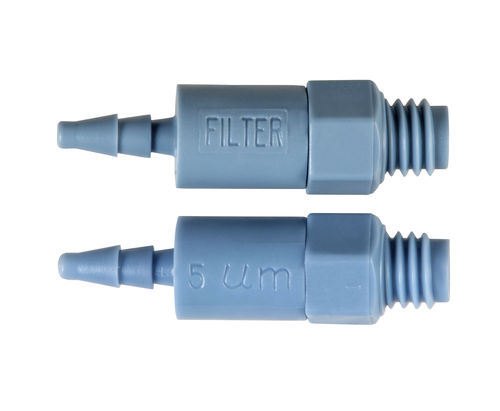

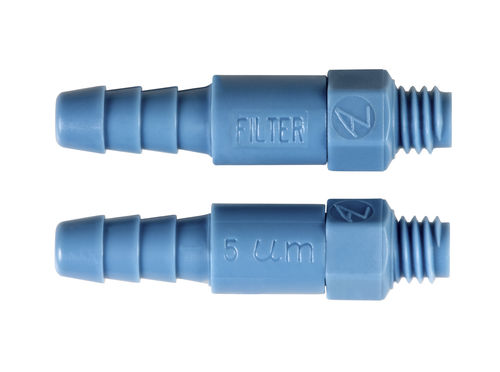

Threaded filters protect sensitive devices from system contamination in a pneumatic or liquid circuit. Filters are a flat stainless-steel weave meant for small devices or for larger systems working in tandem with system-wide filtration. There is no flow orientation to the filters, the filtered area and canister volume are equal on both sides of the filter. Air Logic’s barbed inline filters are low profile, lightweight and fit into the tightest design envelopes.
This filter is well suited to filtering media entering or leaving a critical device. Integrate the threaded filter into a system to create a filtered input or output. Ex. Regulator, Valve, cylinder, or pump.
Threaded filters are commonly used to protect against debris generated inside of a system or device. Ex. Teflon tape debris during assembly, broken o-rings from valves, machining chips from threads.

Connection Type Barbed

Wetted Material(s) Polysulfone (PSU) Stainless Steel (SS)

Installation Method Push-In
Connection Size 10-32 Threads
RoHS 3 (Restriction of Hazardous Substances) Compliant Yes
REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) Compliant Yes

Additional Information

Threaded connections are a convenient way to connect in a variety of applications. This product combines well with Air Logic’s fitting product line for application specific requirements like swivel capability, and replaceable filter applications.

توضیحات:
Designed for
air, liquid

Filtration element
wire mesh

Applications
industrial

Material
stainless steel, polysulfone

Mounting
threaded, barbed

Other characteristics
in-line, disposable, small, metal mesh, miniature

Operating pressure
Max.: 125 psiMin.: 0 psi

Filtration size
5 µm, 25 µm, 43 µm, 73 µm

Flow
Max.: 10 l/min(2.642 us gal/min)Min.: 0 l/min(0 us gal/min)
