نام محصول:

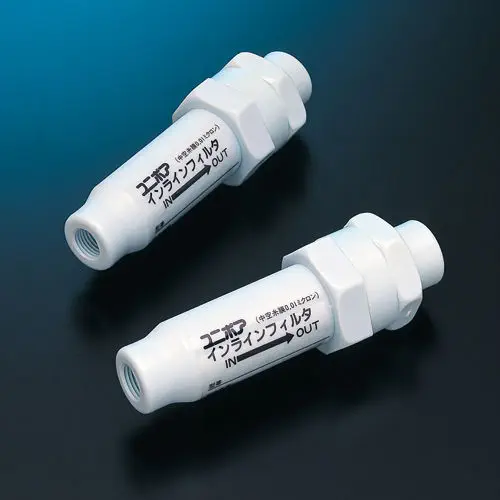

فیلتر درون خطی سری IRF

برند:
KITZ MICRO FILTER CORPORATION

نام انگلیسی:
In-line filter IRF series

مشخصات:
Designed for
gas, compressed air

Filtration element
capsule

Applications
for compressors

Material
polypropylene

Mounting
screw-lock

Fluid specification
for technical gas

Other characteristics
compact, in-line, low pressure, hydrophobic

Flow
450 l/min (118.877 us gal/min)

Operating pressure
Max.: 1 MPa

Filtration size
0.003 µm

Fluid temperature
Min.: 5 °C (41 °F)
Max.: 50 °C (122 °F)

توضیحات:
Our in-line filter product line-ups are using hydrophobic Polypropylene hollow fiber membrane for filter media.
High retention 0.003㎛(*1) filter media can remove bacteria, various particles, and water droplets from air.
Long filter life, compact design, and various product line-ups for required flow rate and connection method.

*1 Base on our measurement condition

【Flow rate】
～450L/min

【Connection】
Screw connection

【Feature】
high performance Hollow Fiber membrane Filter
Compact design
Replaceable filter
hydrophobic filtration media

【Benefit】
The excellent particle removal efficiency Long service life
High flow rate and low pressure drop
Small space installation in various process and equipment.
Eco friendly
Removal of the drain.

【Applications】
Compressed air and Nitrogen supply.
Rinsing equipment for Printed Wiring Board.
Precision apparatus/component, Micro electric parts and various production lines.

【Characteristic】
IRF series is in-line filter of an easy hollow fiber to install.
IRF series can make very clean air.
It can install easily in exiting piping.
