نام محصول:
فیلتر جیبی MULTISACK
برند:
EWAC spol. s r.o.
نام انگلیسی:
Pocket filter MULTISACK
مشخصات:
Designed for
air, for paint, dust
Filtration element
pocket
Filtration method
centrifugal
Applications
suction, industrial, coarse pre-filtration, dust, intake, vent, for the food industry, for the pharmaceutical industry, fine, for cooling systems, for air conditioning, for air treatment units, automotive, for HVAC installations, exhaust, for HVAC, spray booth
Material
synthetic, galvanized steel, synthetic fiber
Norms
G3, G4, F7, F8, F9, M6, M5
Flow
Max.: 3,400 m³/h (120,069.867 ft³/h)
Min.: 0 m³/h (0 ft³/h)
3,400 m³/h (120,069.867 ft³/h)
Operating pressure
Max.: 450 Pa (0.065 psi)
Min.: 25 Pa (0.004 psi)
Fluid temperature
80 °C (176 °F)
توضیحات:

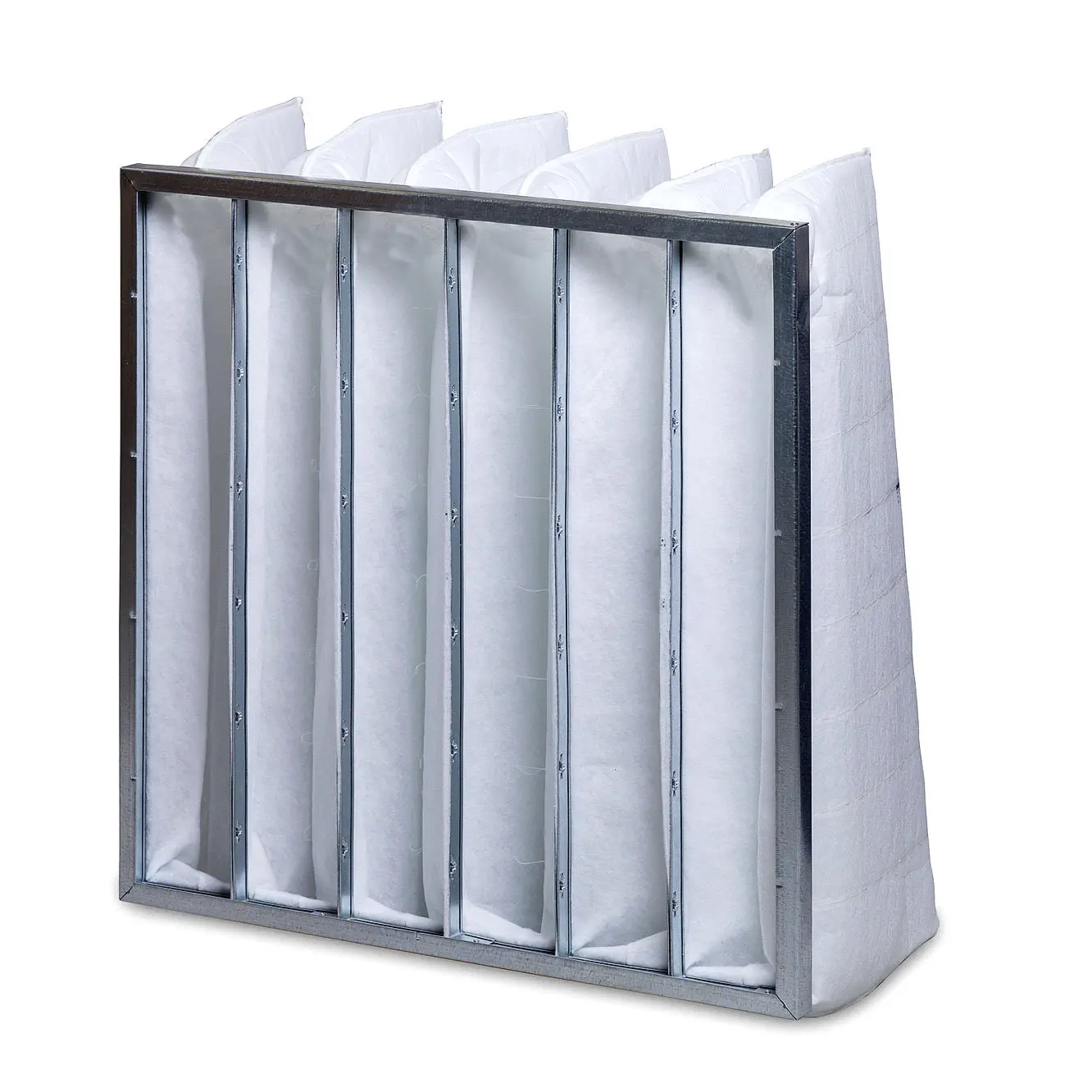

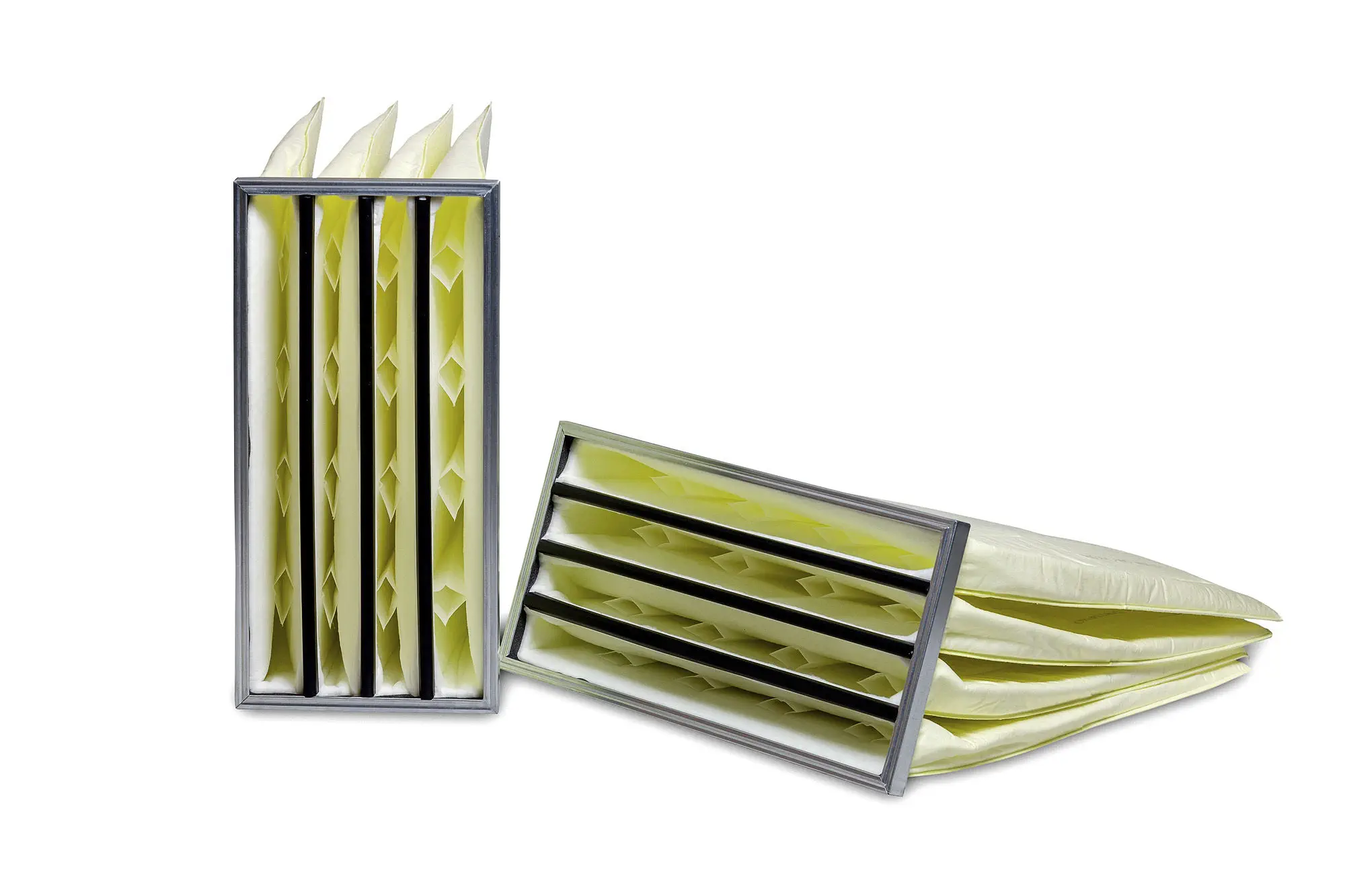

Pocket filters are produced from synthetic layered material. Individual pockets are self-supporting and they are connected to the rib-like structure fixed into the stable metal frame. Pocket filters maintain their good properties even under high pressure and in an extremely dusty environment.
Production of pocket filters is made under the quality management system according to ISO 9001. They correspond with anti-fire standards for the EU and the USA (DIN 53438, UL 900). They are marked with the production mark, filter type and filter class (EN 779).
Pocket filters are found in air-conditioning and ventilation devices from offices to heavy industry. They are used everywhere where there are high demands on efficiency and dust holding capacity at low pressure loss. They are known for their long lifespan which significantly contributes to the prolongation of intervals between the exchanges of these pocket filters. Advantages are clear: reduction of costs for energy and maintenance.
The frame of a pocket filter can be made of zinc-plated metal sheet or plastic. Pocket filters are standardly delivered in a frame made of zinc-plated metal sheet.
