نام محصول:
فیلتر تصفیه فاضلاب

نام انگلیسی:
Wastewater treatment filter ODYSSEUS

برند:
ESTRUAGUA

مشخصات:

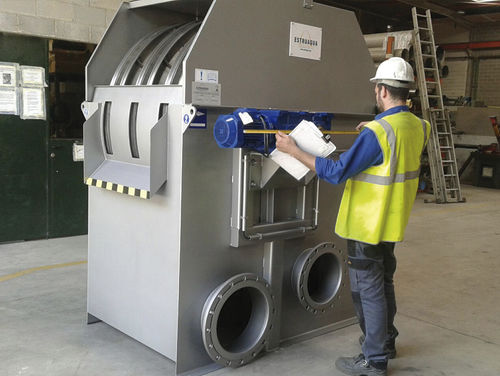

The liquid enters a cylindrical horizontal axis chamber and exits by both sides, trough filtering mesh rotating discs, all in stainless steel. The discs can separate solids as small as 30 microns, up until 350 microns, being easy to change the size of the mesh in site. The eliminated materials are automatically sent to the discharge mouths. The patented system is non clogging and with very low maintenance.

Drum speed:

The drum may be driven by speed regulator to give the discs speeds from 2.4 to 12 r.p.m. . This way different flow may be worked with and change the dripping grade of the separated solids.

Variety in the size for a variety of needs:

The rotating filters FRD-020 ® are made in different sizes, from the two disc model with a capacity of 16 m3/hour, to the 12 discs model with a capacity of up to 1032 m3/hour.

Wide range of applications:

In the filtration of textile residuals, recovery of cellulose fibers, white waters filtration, fiber waste concentration, paper industries effluent filtration, leather production factories effluent filtration, sugar cane industry, recovery of fine PVC debris in the petrochemical industry, etc..

توضیحات:
Designed for
for wastewater treatment

Filtration element
disc, drum

Applications
discharge, separation

Other characteristics
horizontal, cylindrical, small

Filtration size
350 µm

Flow
16 m³/h, 1,032 m³/h(565.035 ft³/h, 36,444.736 ft³/h)
