نام محصول:
فیلتر بخار

نام انگلیسی:
Steam filter B series

برند:
Armstrong International, Inc.

مشخصات:

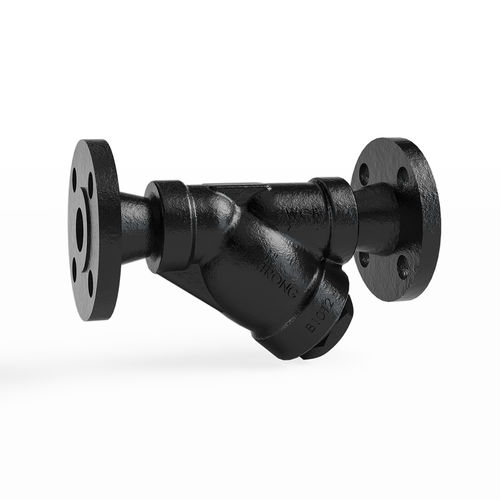

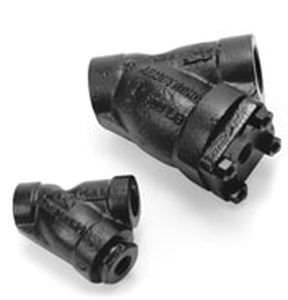

B Series Screwed, Socketweld and Flanged Y-Type Strainers feature screen chambers that won’t leak or crush. Both ends of the chambers are precisely machined. This means perfectly round and smooth seating surfaces, as well as a fixed chamber length. Since the screen seats snugly on the machined surface, no particle bigger than the screen opening can escape around the end of the screen.

SCREWED RETAINERS: EASY IN, EASY OUT

Straight threads mean it takes less torque to achieve a tight seal with proper gasket compression. Less torque is also required to remove the retainer. For you, that means less danger of “freezing in” than with hard-to-break tapered pipe threads.

توضیحات:
Designed for
for steam

Filtration element
Y-strainer

Filtration method
pressure

Applications
industrial

Material
carbon steel

Mounting
screw-lock

Other characteristics
Y

Operating pressure
Min.: 14 bar(203.053 psi)Max.: 102 bar(1,479.385 psi)
