نام محصول:
فیلتر با راندمان بالا
نام انگلیسی:
High-efficiency filter VHC
برند:
TECHNICIS Filtration
مشخصات:

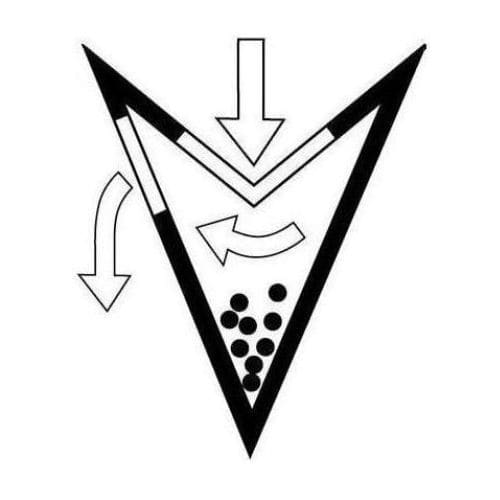

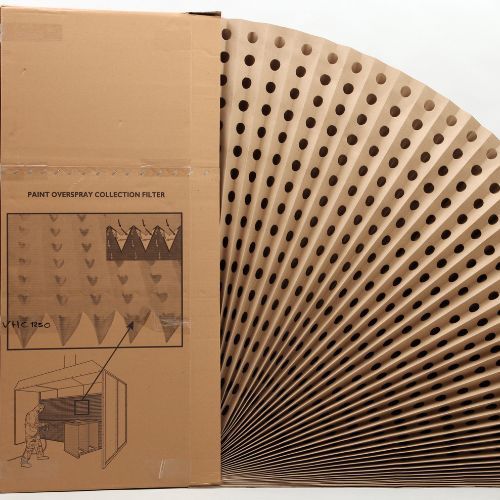

Accordion / Concertina / V-shape / V-Type / corrugated paper filter made by Technicis Filtration.
Mist and paint overspray arrestor for industrial spray booths.
Pleated Cardboard Filter – Very High Capacity is an improvement enabling a retention capacity and, therefore, a lifespan up to 70% greater than that of “standard” pleated cardboard filters.
This filter is a patented innovation by Technicis Filtration, ideal for high-volume painting applications on automatic or manual industrial lines. It is particularly suited for capturing mist and overspray from wet and sticky particles (paints, varnishes, resins, adhesives, etc.).
This filter maintains the same technical characteristics as the standard pleated cardboard filter in terms of pressure drop and efficiency while reducing the frequency of changeouts.
Technicis Filtration is the leading French manufacturer of pleated cardboard filters for paint booths, also offering high-efficiency and high-capacity versions. These filters have been manufactured in our Nantes factory since 1992.

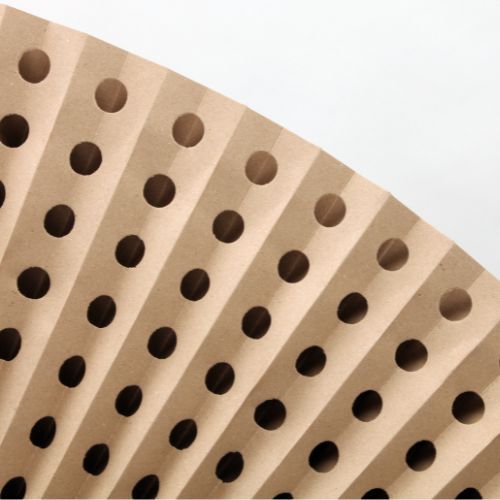

Raw materials
2 layers of recycled interkraft cardboard, 250g/m²
Light pearlescent treatment to improve humidity and moisture resistance
Perforation, pleating, and assembly with water based glue
Recommended operating characteristics
Recommended frontal air velocity: from 0.30 to 1 m/s
Performance
Separation efficiency: Up to 95% depending on the sprayed product
Suitable for filtering wet or sticky oversprays, whether water-based or solvent-based

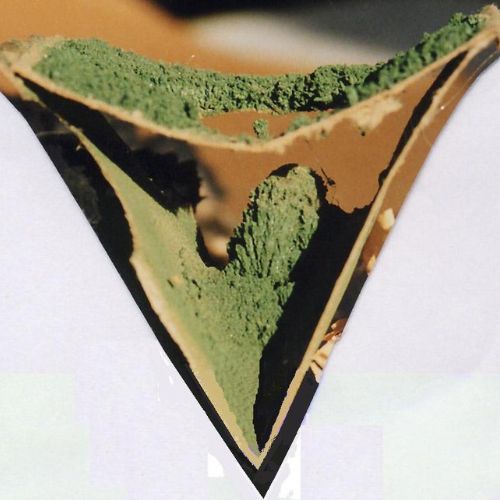

Retention capacity: From 8 to 30 kg/m² depending on the nature and density of the sprayed product
توضیحات:
Designed for
for paint
Filtration element
sleeve
Filtration method
pressure
Applications
industrial, for the cosmetics industry
Material
paper
Other characteristics
pleated, high-efficiency, high-capacity, V-form
Operating pressure
Max.: 150 Pa(0.022 psi)Min.: 20 Pa(0.003 psi)
Flow
Max.: 3,600 m³/h(127,132.8 ft³/h)Min.: 1,200 m³/h(42,377.6 ft³/h)
