نام محصول:
فیلتر آب
نام انگلیسی:
Water filter KDF-K series
برند:
KDF-K series
مشخصات:

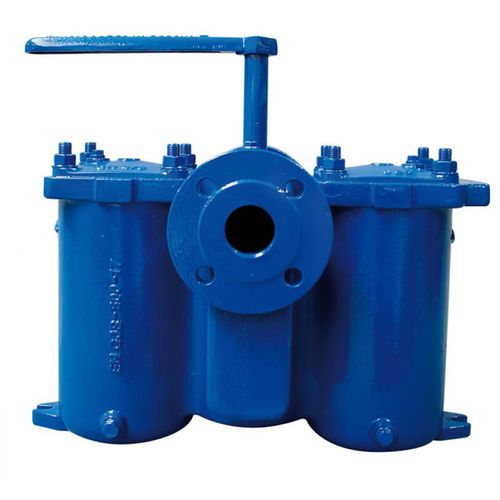

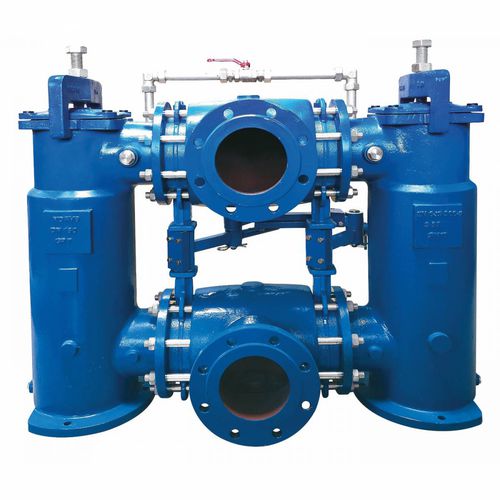

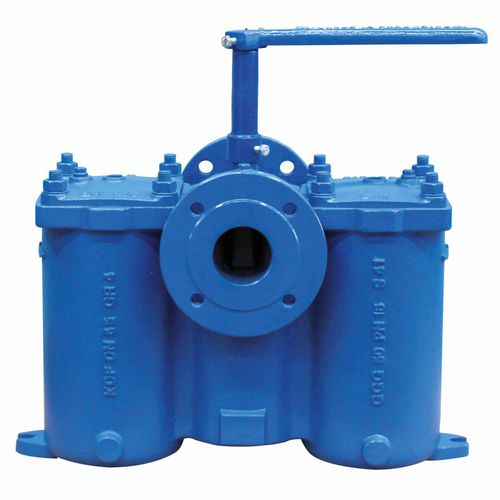

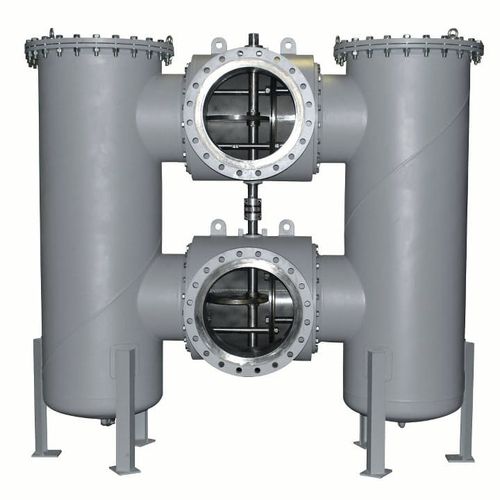

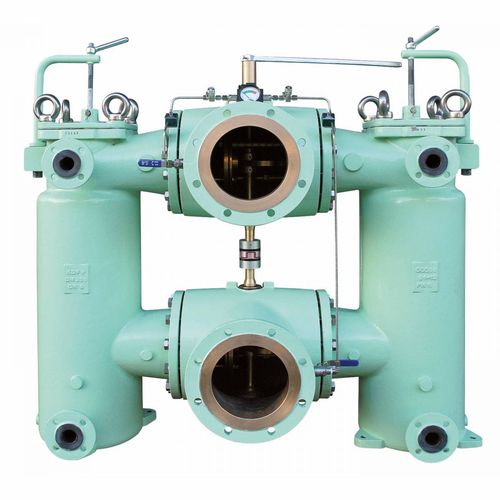

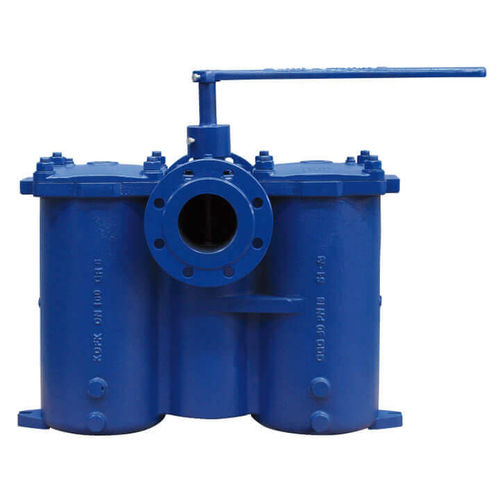

Duplex filter DN15-250 / ½“-10“

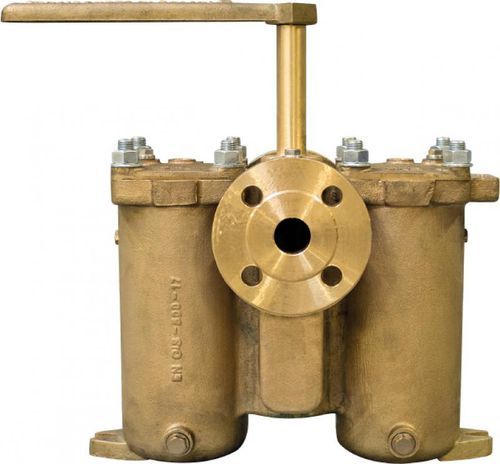

Made of ductile cast iron GGG-50/ EN GJS-500-07 or Bronze
Many sizes available from stock
Available with Quick-release clamp
Space saving design
The KDF duplex filter can be used universally as a coarse and fine filter on the suction or on the pressure side. Filter operation is maintained without interruptions during the cleaning phase. The duplex filter is cast as one part consists of two identical single filters which can be operated alternatively or in parallel via a changeover fitting.
The single filter consists of a cast body, cover and filter insert. The filter insert is a basket strainer made of perforated sheet metal covered with a mesh made of different materials and mesh sizes. The medium to be filtered enters the filter from above, generally flowing through the insert from the inside outward. Impurities are caught in the strainer insert, accordingly.
توضیحات:
Designed for
water, oil
Filtration element
double-basket
Filtration method
pressure
Applications
suction, fine filtration
Material
cast iron
Other characteristics
duplex
Operating pressure
Max.: 16 bar(232.06 psi)Min.: 6 bar(87.023 psi)
Filtration size
Max.: 1,000 µmMin.: 10 µm
Flow
Max.: 250 m³/h(8,828.667 ft³/h)Min.: 3 m³/h(105.944 ft³/h)
