نام محصول:
فیلتر آب
نام انگلیسی:

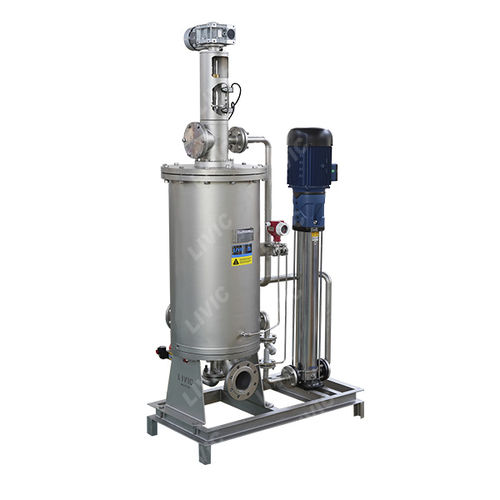

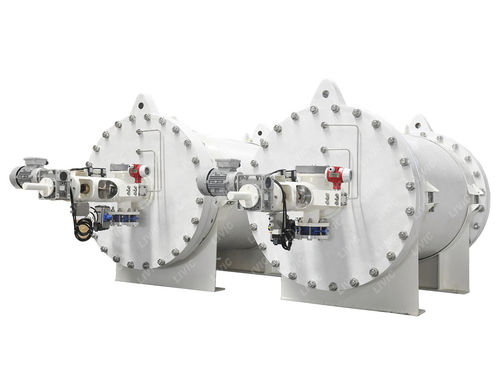

Water filter GFK series
برند:
GFK series
مشخصات:
GFK Series automatic self-cleaning filter is the high performance filter particularly designed for fine water filtration.The superior filtration rating is 15 to 300μm. Highly efficient back-flushing secures normal working even for the turbid raw water.The water flows into the screen inside from the filter inlet, passes the screen and flows out from the outlet.The particles are blocked by the screen mesh. When the filtration pressure drop rises to the preset value, the control system triggers the cleaning sequeces. The back-flushing nozzles driven by the motor moves helically and clean the inner screen surface. After all the screen area is scanned and cleaned by the suction nozzles, one back-flushing cycle is completed. During back-flushing, the filtration goes on and only very low flowrate fluctuation and outlet pressure decrease happens.
The water flows into the screen inside from the filter inlet, gets through the screen and
flows out from the outlet. The impurity particles are blocked by the screen mesh. After
the accumulation of more particles, the filtration pressure drop rises to preset value

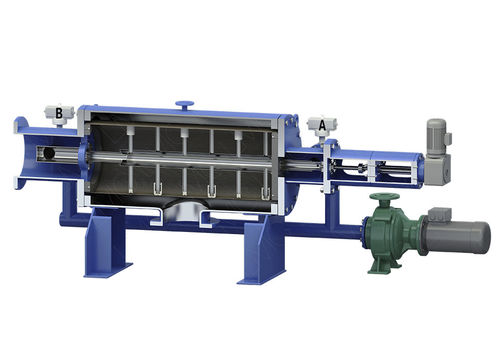

(usually 50 Kpa). The control system triggers the cleaning sequences. Open the back-

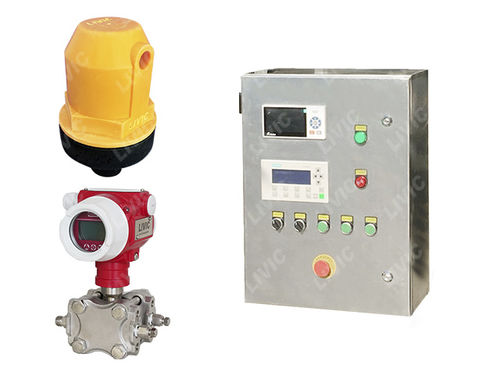

flushing valve A and the auxiliary back-flushing pump. The gear motor drives the
reciprocating scanner at the same time. The dual-channel back-flushing tube moves
helically and cleans the screen inside with suction nozzles. The differential pressure =
outlet pressure – back-flushing outlet A pressure. The outside filtrate reverse flow
passes the screen and injects into the group A suction nozzle inside.
توضیحات:
Designed for
water
Filtration element
basket
Filtration method
pressure
Applications
fine
Cleaning
self-cleaning
Other characteristics
automatic
Operating pressure
Min.: 0.001 Pa(0 psi)Max.: 0.001 Pa(0 psi)
Filtration size
Min.: 15 µmMax.: 300 µm
Flow
Min.: 50 m³/h(1,765.733 ft³/h)Max.: 3,000 m³/h(105,944 ft³/h)
